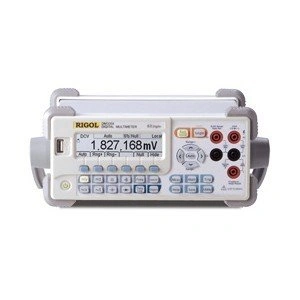

 Rigol DM3062 6½ Resolution Digital Multimeter images


Pin It


Rigol DM3062 6½ Resolution Digital Multimeter

SKU: Rigol DM3062

  • Product Description
  • •Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
  • •I/O: GPIB, LAN, RS-232 and USB Device
  • •Built-in USB Host to support USB disk and USB printer
  • •50 K/s maximum sample rate, 1M points of memory depth
  • •16 channels data inspection module: Data acquisition, inspection and programable auto measure.
  • •256 × 64 pixels LCD display, to support muilti-display and screen menu



Model

DM3062

Reading Resolution

6½ digits(2,400,000-count)

Maximum Sample Rate

50 krdgs/s

DC Voltage Accuracy

(per year)

0.0085%

Volatile Memory Depth

2 Mrdgs

Standard Interface

USB Host & Device,RS-232, LAN,

GPIB

Optional Interface

N/A

Product Category

Desktop Digital Multimeter

Dimension

Width×Height×Depth=232mm×107mm×291mm

Weight

2.5 kg

Specifications:

Measurement

Range

Accuracy

Resolution

DC Voltage (DCV)

200.0000 mV
2.000000 V
20.00000 V
200.0000 V
1000.000 V

0.0085%+140dig.
0.0078%+14dig.
0.0085%+10dig. 0.0100%+24dig.
0.0110%+10dig.

0.1 µV
1 µV
10 µV
100 µV
1 mV

AC Voltage (ACV)

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz





200.000 mV



5.10%+140dig.
0.60%+140dig.
0.15%+140dig.
0.16%+100dig.
0.60%+400dig.
4.50%+1600dig.



1 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



2.00000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

10 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



20.0000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

100 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



200.000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

1 mV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



750.000 V

5.10%+525dig.
0.38%+525dig.
0.11%+525dig.
0.40%+525dig.
0.60%+750dig.
4.50%+6000dig.

1 mV

DC Current (DCA)

2.000000 mA
20.00000 mA
200.0000 mA
1.000000 A
10.00000 A

0.076%+1000dig.
0.075%+120dig.
0.081%+100dig.
0.073%+300dig.
0.33%+200dig.

0.001 µA
0.01 µA
0.1 µA
1 µA
10 µA

AC Current (ACA)

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz





20.0000 mA



5.1%+140dig.
0.64%+140dig.
0.22%+140dig.
0.22%+500dig.



0.1 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

200.000 mA

5.1%+140dig.
0.64%+140dig.
0.22%+140dig.
0.22%+500dig.

1 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

1.00000 A

5.2%+270dig.
0.71%+270dig.
0.29%+270dig.
0.35%+400dig.

10 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

10.0000 A

5.4%+70dig.
0.9%+70dig.
0.90%+60dig.
0.75%+60dig.

100 µA

Resistance

200.0000 Ω
2.000000 kΩ
20.00000 kΩ
200.0000 kΩ
1.000000 MΩ
10.00000 MΩ
100.0000 MΩ

0.020%+220dig.
0.015%+40dig.
0.015%+20dig
0.015%+20dig.
0.015%+10dig.
0.056%+60dig.
0.800%+150dig.

0.1 mΩ
1 mΩ
10 mΩ
100 mΩ
1 Ω
10 Ω
100 Ω

Capacitance

2.000 nF
20.00 nF
200.0 nF
2.000 µF
20.00 µF

2.0%+50dig 1.0%+10dig.
1.0%+10dig.
1.0%+10dig.
1.0%+10dig.

1 pF
10 pF
100 pF
1 nF
10 nF

Frequencies

3 Hz - 5 Hz
5 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 300 kHz

0.07%
0.04%
0.02%
0.007%

0.001 Hz
