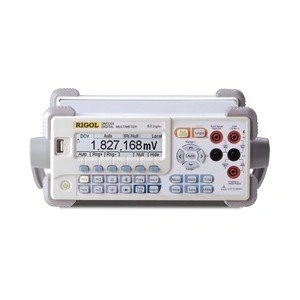

 Rigol DM3061 6 ½ digits, 1k/s samplig,  USB host/device images


Pin It


Rigol DM3061 6 ½ digits, 1k/s samplig, USB host/device

SKU: Rigol DM3061

Product Description

The Rigol DM3061 is a high quality digital tabletop multimeter of the DM3060 series with a sampling rate of max. 50 kSa/s and a memory depth of 2 MSa.

These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too.

The LC-Display is with its 256x64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 6½ digits (max. count 2.400.000).








Model

DM3061

Reading Resolution

6½ digits(2,400,000-count)

Maximum Sample Rate

50 krdgs/s

DC Voltage Accuracy

(per year)

0.0085%

Volatile Memory Depth

2 Mrdgs

Standard Interface

USB Host & Device,

RS-232

Optional Interface

N/A

Product Category

Desktop Digital Multimeter

Dimension

Width×Height×Depth=232mm×107mm×291mm

Weight

2.5 kg



Specifications:

Measurement

Range

Accuracy

Resolution

DC Voltage (DCV)

200.0000 mV
2.000000 V
20.00000 V
200.0000 V
1000.000 V

0.0085%+140dig.
0.0078%+14dig.
0.0085%+10dig. 0.0100%+24dig.
0.0110%+10dig.

0.1 µV
1 µV
10 µV
100 µV
1 mV

AC Voltage (ACV)

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz





200.000 mV



5.10%+140dig.
0.60%+140dig.
0.15%+140dig.
0.16%+100dig.
0.60%+400dig.
4.50%+1600dig.



1 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



2.00000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

10 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



20.0000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

100 µV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



200.000 V

5.10%+140dig.
0.38%+140dig.
0.11%+140dig.
0.40%+140dig.
0.60%+200dig.
4.50%+1600dig.

1 mV

3 Hz - 10 Hz

10 Hz - 40 Hz
40 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz
100 kHz - 300 kHz



750.000 V

5.10%+525dig.
0.38%+525dig.
0.11%+525dig.
0.40%+525dig.
0.60%+750dig.
4.50%+6000dig.

1 mV

DC Current (DCA)

2.000000 mA
20.00000 mA
200.0000 mA
1.000000 A
10.00000 A

0.076%+1000dig.
0.075%+120dig.
0.081%+100dig.
0.073%+300dig.
0.33%+200dig.

0.001 µA
0.01 µA
0.1 µA
1 µA
10 µA

AC Current (ACA)

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz





20.0000 mA



5.1%+140dig.
0.64%+140dig.
0.22%+140dig.
0.22%+500dig.



0.1 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

200.000 mA

5.1%+140dig.
0.64%+140dig.
0.22%+140dig.
0.22%+500dig.

1 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

1.00000 A

5.2%+270dig.
0.71%+270dig.
0.29%+270dig.
0.35%+400dig.

10 µA

3 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 5 kHz
5 kHz - 10 kHz

10.0000 A

5.4%+70dig.
0.9%+70dig.
0.90%+60dig.
0.75%+60dig.

100 µA

Resistance

200.0000 Ω
2.000000 kΩ
20.00000 kΩ
200.0000 kΩ
1.000000 MΩ
10.00000 MΩ
100.0000 MΩ

0.020%+220dig.
0.015%+40dig.
0.015%+20dig
0.015%+20dig.
0.015%+10dig.
0.056%+60dig.
0.800%+150dig.

0.1 mΩ
1 mΩ
10 mΩ
100 mΩ
1 Ω
10 Ω
100 Ω

Capacitance

2.000 nF
20.00 nF
200.0 nF
2.000 µF
20.00 µF

2.0%+50dig 1.0%+10dig.
1.0%+10dig.
1.0%+10dig.
1.0%+10dig.

1 pF
10 pF
100 pF
1 nF
10 nF

Frequencies

3 Hz - 5 Hz
5 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 300 kHz

0.07%
0.04%
0.02%
0.007%

0.001 Hz



Details

Rigol DM3061 Digital Multimeter

Power supply

230 V / 50 Hz / 110 V / 60 Hz mains connection

Safety standard

CAT II/300 V

Dimensions

290.5 mm × 231.6 mm × 107.0 mm
(11.44" × 9.12" × 4.21")

Weight without accessories / packaging

2500 g
(5.512 lbs)

Weight with accessories / packaging

4465 g
(9.844 lbs)
