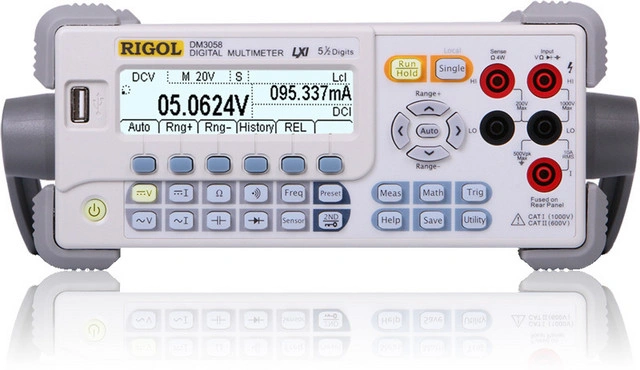

Rigol DM3058 Digital Multimeter

SKU: Rigol DM3058 Digital Multimeter

Rigol DM3058 Digital Multimeter



Product Description:

The Rigol DM3058 is a high quality digital tabletop multimeter of the DM3050 series with a sampling rate of max. 120 Sa/s.

These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too.

The LC-Display is with its 256x64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 5½ digits (max. count 240.000).



Special Features:

• Filesystem and USB Stick Support

With the build in USB Host-Port you can save test readings and settings on an USB-Stick. Settings can also be saved in 10 internal storage locations.

• High Resolution

This model has a maximum count of 240.000.

• Online Help

Every function and every Button has a short description in the build in online help feature. Simply press and hold a button to see its description.

• Sensor System

The DM3000 converts the sensor physical properties into electrical voltage, resistance, current for measurement and shows measured and corresponding values.



Web Interface:



As the only device of this class the Rigol DM3058 has a build in Web Interface. It is possible to control all of its features and settings remotely with this Web-Interface.

A very easy configuration of the network settings (using DHCP Server or fixed IP setting) makes this device available in any network very fast.

The Web-Interface provides an easy way to all settings and the remote control of the device. In the Web Control mode the frontend of the device is visible in the browser. The functions can beeasily accessed using the mouse and clicking on the displayed buttons.

All measurement values are shown on the virtual display.



Specifications:

Measurement

Range

Accuracy

Resolution

DC Voltage (DCV)

200.000 mV

2.00000 V

20.0000 V

200.000 V

1000.00 V

0.015%+8 dig.

0.015%+6 dig.

0.015%+8 dig.

0.015%+6 dig.

0.015%+6 dig.

1 µV

10 µV

100 µV

1 mV

10 mV

AC Voltage (ACV)

      20 Hz - 45 Hz

      45 Hz - 20 kHz

      20 kHz - 50 kHz

      50 kHz - 100 kHz



200.000 mV



1.5%+200 dig.

0.2%+100 dig.

1.0%+100 dig.

3.0%+100 dig.



1 µV

20 Hz - 45 Hz

20 Hz - 45 Hz

20 kHz - 50 kHz

50 kHz - 100 kHz

2.00000 V

1.5%+200 dig.

0.2%+100 dig.

1.0%+100 dig.

3.0%+100 dig.

10 µV

20 Hz - 45 Hz

45 Hz - 20 kHz

20 kHz - 50 kHz

50 kHz - 100 kHz

20.0000 V

1.5%+200 dig.

0.2%+100 dig.

1.0%+100 dig.

3.0%+100 dig.

100 µV

20 Hz - 45 Hz

45 Hz - 20 kHz

20 kHz - 50 kHz

50 kHz - 100 kHz

200.000 V

1.5%+200 dig.

0.2%+100 dig.

1.0%+100 dig.

3.0%+100 dig.

1 mV

20 Hz - 45 Hz

45 Hz - 20 kHz

20 kHz - 50 kHz

50 kHz - 100 kHz

750.000 V

1.5%+750 dig.

0.2%+750 dig.

1.0%+750 dig.

3.0%+375 dig.

10 mV

DC Current (DCA)



200.000 µA

2.00000 mA

20.0000 mA

200.000 mA

200.000 mA

10.0000 A

0.055%+10dig

0.055%+10dig

0.095%+40dig

0.070%+16dig

0.170%+40dig

0.250%+10dig

0.001 µA

0.01 µA

0.1 µA

1 µA

10 µA

100 µA

AC Current (ACA)

20 Hz - 45 Hz

45 Hz - 2 kHz

2 kHz - 10 kHz



20.0000 mA



1.5%+200 dig.

0.5%+200 dig.

2.5%+400 dig.



0.1 µA

20 Hz - 45 Hz

45 Hz - 2 kHz

2 kHz - 10 kHz

200.000 mA

1.5%+200 dig.

0.3%+200 dig.

2.5%+400 dig.

1 µA

20 Hz - 45 Hz

45 Hz - 2 kHz

2 kHz - 10 kHz

2.00000 A

1.5%+400 dig.

0.5%+400 dig.

2.5%+400 dig.

10 µA

20 Hz - 45 Hz

45 Hz - 2 kHz

2 kHz - 5 kHz

10.0000 A

1.5%+150 dig.

0.5%+150 dig.

2.5%+200 dig.

100 µA

Resistance

200.000 Ω

2.00000 kΩ

20.0000 kΩ

200.000 kΩ

2.00000 MΩ

100.000 MΩ

0.030%+10 dig.

0.020%+6 dig.

0.020%+6 dig

0.020%+6 dig.

0.040%+8 dig.

0.250%+3 dig.

0.001 Ω

0.01 Ω

0.1 Ω

1 Ω

10 Ω

1 kΩ

Capacitance

2.000 nF

20.00 nF

200.0 nF

2.000 µF

200.0 µF

10000 µF

3.0%+20 dig 1.0%+10 dig.



1.0%+10 dig.

1.0%+10 dig.

1.0%+10 dig.

2.0%+5 dig.

1 pF

10 pF

100 pF

1 nF

100 nF

1 µF

Frequencies

20 Hz - 2 kHz

2 kHz - 20 kHz

20 kHz - 200 kHz

200 kHz - 1 MHz

0.01%

0.01%

0.01%

0.01%

0.001 Hz





Function

Rigol DM3058 Digital Multimeter

Auto Range

Manual Range

True RMS (TRMS)

Diode test

Transistor test



Continuity test

√ (fast reaction time with 123 Sa/s!)

Battery test



Low battery indication

n/a (mains connection only)

Relatively measuring

Data hold

Auto power-off



Overload protection

Shockproof Protection



Backlight

Max. Reading

240.000 (5½ digits)

LCD

90 mm × 25 mm (256x64Pixel)

Sampling rate

up to 120 reading/sec.

Memory Depth

10 groups of 2000 readings

Connections

RS-232, USB Device, USB Host, Ext.Trig.,
VM Comp., 10/100MBit LAN, GPIB



Details

Rigol DM3058 Digital Multimeter

Power supply

230 V / 50 Hz / 110 V / 60 Hz mains connection

Safety standard

CAT II/600 V

Dimensions

290.5 mm × 231.6 mm × 107.0 mm
(11.44" × 9.12" × 4.21")

Weight without accessories / packaging

2500 g
(5.512 lbs)

Weight with accessories / packaging

4465 g
(9.844 lbs)
