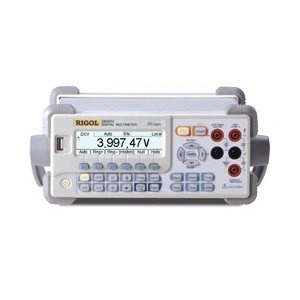

RIGOL DM3054 5¾ Digit USB, Lan, GP-IB & Multiplexer

RIGOL DM3054 5¾ Digit USB, Lan, GP-IB & Multiplexer

Price on request
Phone orders - 011 805 5030 / 084 3797 031011 805 5030 / 084 3797 031, Monday-Friday, 08:00-17:00
Product code - SKU: RIGOL DM3054

Description

Product Description

50 kSa/s and a memory depth of 2 MSa.

These Rigol multimeters have a very sophisticated and easy to use interface and provides plenty functions for all measurement tasks. The use of the menu navigation is very intuitional and the device will provide precise results in its many application areas. With the help of a computer you can perform long running monitoring tasks too.

The LC-Display is with its 256x64 pixels easy to read and provides a very good overview over all features. The display has a resolution of 5¾ digits (max. count 480.000).



RIGOL DM3054 5¾ Digit USB, Lan, GP-IB & Multiplexer



  • •256 × 64 pixels LCD display, to support muilti-display and screen menu
  • •I/O: GPIB, LAN, RS-232 and USB Device
  • •Test resolution: 6½ digits (2,400,000-count), 5¾ digits (500,000-count)
  • •50 K/s maximum sample rate, 1M points of memory depth
  • •16 channels data inspection module: Data acquisition, inspection and programable auto measure.
  • •Built-in USB Host to support USB disk and USB printer
  • •26 test functions: DC voltage and current, AC voltage and current, 2-wire and 4-wire resistance, Capacitance, Continuity Test, Diode Test Frequency, Period, Ratio Test, Temperature, Any Sensor Test High Limit, Low Limit and High/Low Limit? Math: Max, Min, Avg, Null, dBm, dB Data Acquisition: Data Record, Inspection, Programmable Automatic Measurements



Specifications:

Measurement

Range

Accuracy

Resolution

DC Voltage (DCV)

400.000 mV
4.00000 V
40.0000 V
400.000 V
1000.00 V

0.025%+32 dig.
0.025%+24 dig.
0.025%+24 dig.
0.030%+24 dig.
0.030%+5 dig.

1 µV
10 µV
100 µV
1 mV
10 mV

AC Voltage (ACV)

10 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz





200.000 mV



1.0%+200 dig.
0.2%+200 dig.
2.0%+400 dig.
4.0%+400 dig.



1 µV

10 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz

2.00000 V

1.0%+200 dig.
0.2%+200 dig.
1.0%+200 dig.
2.0%+400 dig.



10 µV

10 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz

20.0000 V

1.0%+200 dig.
0.2%+200 dig.
1.0%+200 dig.
2.0%+400 dig.

100 µV

10 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz

200.000 V

1.0%+200 dig.
0.2%+200 dig.
1.0%+200 dig.
2.0%+400 dig.



1 mV

10 Hz - 45 Hz
45 Hz - 20 kHz
20 kHz - 50 kHz
50 kHz - 100 kHz

750.00 V

1.0%+75 dig.
0.2%+75 dig.
1.0%+75 dig.
2.0%+15 dig.

10 mV

DC Current (DCA)

2.00000 mA
20.0000 mA
200.000 mA
1.00000 A
10.0000 A

0.05%+140 dig.
0.05%+16 dig.
0.05%+18 dig.
0.1%+70 dig.
0.2%+7 dig.

0.01 µA
0.1 µA
1 µA
10 µA
100 µA

AC Current (ACA)

10 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz





20.0000 mA



1.5%+200 dig.
0.5%+200 dig.
2.0%+400 dig.



0.1 µA

10 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz

200.000 mA

1.5%+200 dig.
0.5%+200 dig.
2.0%+400 dig.

1 µA

10 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 10 kHz

1.00000 A

1.5%+500 dig.
0.5%+500 dig.
2.0%+500 dig.

10 µA

10 Hz - 45 Hz
45 Hz - 2 kHz
2 kHz - 5 kHz

10.0000 A

1.5%+100 dig.
0.5%+100 dig.
2.0%+200 dig.

100 µA

Resistance

400.000 Ω
4.00000 kΩ
40.0000 kΩ
400.000 kΩ
4.00000 MΩ
100.000 MΩ

0.05%+40 dig.
0.015%+24 dig.
0.015%+24 dig
0.03%+28 dig.
0.06%+40 dig.
2.00%+5 dig.

0.001 Ω
0.01 Ω
0.1 Ω
1 Ω
10 Ω
1 kΩ

Capacitance

4.000 nF
40.00 nF
400.0 nF
4.000 µF
40.00 µF
200.0 µF

2.0%+100 dig 1.0%+20 dig.
1.0%+20 dig.
1.0%+20 dig.
1.0%+20 dig.
1.0%+10 dig.

1 pF
10 pF
100 pF
1 nF
10 nF
100 nF

Frequencies

3 Hz - 5 Hz
5 Hz - 10 Hz
10 Hz - 40 Hz
40 Hz - 300 kHz

0.15%
0.07%
0.02%
0.02%

0.001 Hz



Function

Rigol DM3054 Digital Multimeter

Auto Range

√

Manual Range

√

True RMS (TRMS)

√

Diode test

√

Transistor test



Continuity test

√ (fast reaction time with 25 Sa/s!)

Battery test



Low battery indication

n/a (mains connection only)

Relatively measuring

√

Data hold

√

Auto power-off



Overload protection

√

Shockproof Protection



Backlight

√

Max. Reading

480.000 (5¾ digits)

LCD

90 mm × 25 mm (256 × 64 Pixel)

Sampling rate

up to 50k reading/sec.

Memory Depth

2 million readings

Connections

RS-232, USB Device, USB Host, Ext.Trig.,
VM Comp., LAN, GPIB, Multiplexer Module



Details

Rigol DM3054 Digital Multimeter

Power supply

230 V / 50 Hz / 110 V / 60 Hz mains connection

Safety standard

CAT II/300 V

Dimensions

290.5 mm × 231.6 mm × 107.0 mm
(11.44" × 9.12" × 4.21")

Weight without accessories / packaging

2500 g
(5.512 lbs)

Weight with accessories / packaging

4465 g
(9.844 lbs)
