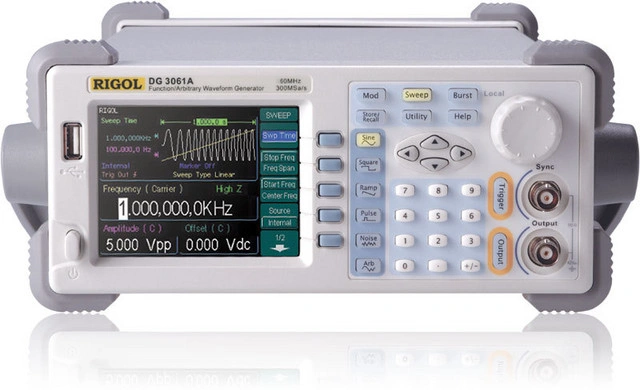

Rigol DG3061A Waveform Generator

SKU: Rigol DG3061A Waveform Generator

Rigol DG3061A Waveform Generator



This product is no longer available and has been replaced by the Rigol DG4062



Quick Overview

High quality function / arbitrary waveform generator with 60 MHz bandwidth, 300 MSa/s and 1 Mpts memory.



Product Description

The Rigol DG3061A is a Function / Arbitary Waveform Generator to create high quality signals up to 60 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.

The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



Special Features



Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.



Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.



Specifications



Generator

Function / Waveform Generator Rigol DG3061A

Display

3.8" STN LCD with 64 colors

Resolution

320 × 240 Pixel

Interfaces

- USB-Host (for USB stick i.e. to save/load waveforms)

- USB for a PC connection

- LAN for network connection

- GPIB (IEE-488, General Purpose Interface Bus)

Dimensions

231 mm × 365 mm × 108 mm
(9.09" × 14.37" × 4.25")

Weight

3.5 kg (7.72 lbs)

Supported operation systems

Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)





Function

Function / Waveform Generator Rigol DG3061A

Channels

1

Signal Output

Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise

Vertical Resolution

14 bit

Amplitudes

10 mVpp ~ 10 Vpp (50 Ω)

20 mVpp ~ 20 Vpp (high impedance)

DC Offset

±5 V (50 Ω)

±10 V (high impedance)

Sample Rate

300 MSa/s

Frequency Range Sine

1 µHz - 60 MHz

Frequency Range Rectangle

1 µHz - 30 MHz

Frequency Range Pulse

500 µHz - 20 MHz

Frequency Range Ramp

1 µHz - 1 MHz

Frequency Range Arbitrary

1 µHz - 25 MHz

Frequency Range Noise

30 MHz (-3db)

Resolution

1 µHz
