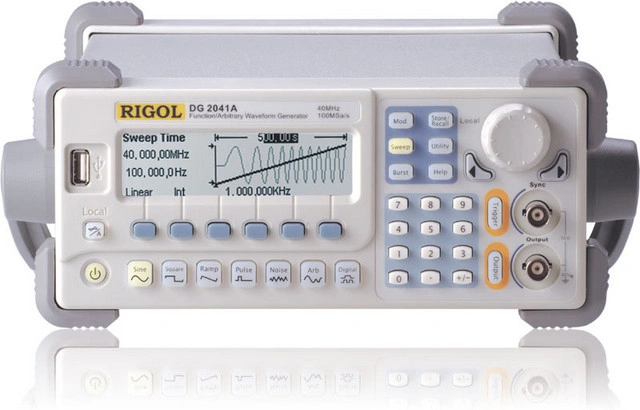

Rigol DG2021A Waveform Generator

SKU: Rigol DG2021A Waveform Generator

Rigol DG2021A Waveform Generator



This product is no longer available and has been replaced by the  Rigol DG2041A

Quick Overview

High quality function / arbitrary waveform generator 25 MHz / 100 MSa/s.



Product Description

The Rigol DG2021A is a Function / Arbitary Waveform Generator to create high quality signals up to 25 MHz (Sine). Beside the analog output the devices include a USB-Host- and a USB-device, a RS-232, LAN and GPIB interface.

The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



Special Features



Flexible arbitrary waveforms

The instrument has 48 built-in arbitrary waves (contains DC) which including common, math, engineering, window function and other common waves.



Precise amplitude adjustment

2 mV minimum range (50 O)



Precise frequency adjustment

1 µHz frequency resolution



Built-in Frequency Counter

The counter can be used to measure frequency, period, duty cycle, positive pulse width and negative pulse width within the range of 100 mHz to 200 MHz.



Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.



Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.



Specifications:


Generator

Function / Waveform Generator Rigol DG2021A

Display

Monochrome LCD

Resolution

256 × 64 Pixel

Interfaces

- USB-Host (for USB stick i.e. to save/load waveforms)

- USB for a PC connection

- LAN for network connection

- GPIB (IEE-488, General Purpose Interface Bus)

Dimensions

232 mm × 288 mm × 108 mm
(9.13" × 11.34" × 4.25")

Weight

2.7 kg (5.95 lbs)

Supported operation systems

Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)




Function

Function / Waveform Generator Rigol DG2021A

Channels

1

Signal Output

Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise

Vertical Resolution

14 bit

Amplitudes

20 mVpp ~ 5 Vpp (50 Ω)

40 mVpp ~ 10 Vpp (high impedance)

DC Offset

±5 V (50 Ω)

±10 V (high impedance)

Sample Rate

100 MSa/s

Frequency Range Sine

1 µHz - 25 MHz

Frequency Range Rectangle

1 µHz - 25 MHz

Frequency Range Pulse

500 µHz - 10 MHz

Frequency Range Ramp

1 µHz - 250 KHz

Frequency Range Arbitrary

1 µHz - 8 MHz

Frequency Range Noise

20 MHz (-3db)

Resolution

1 µHz
