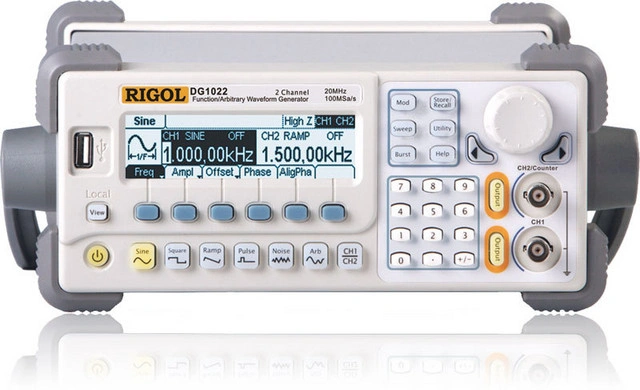

Rigol DG1022 Waveform Generator

SKU: Rigol DG1022 Waveform Generator

Rigol DG1022 Waveform Generator



Quick Overview:

High quality 2 channel function / arbitrary waveform generator with 20 MHz bandwidth, 100 MSa/s and 4 kpts memory.

Delivery including PC software, BNC cable (1 m), power adapter and manual.



Product Description:

The Rigol DG1022 is a 2 channel Function / Arbitary Waveform Generator to create high quality signals up to 20 MHz (Sine). Beside the two analog outputs the devices include a 200 MHz frequency counter, a USB-Host- and a USB-device interface.

The Rigol Function-generators have a sophisticated and easy to use userinterface and offers multiple functions for all tasks. The menu navigation is very intuitional in use and all functions and parameters are easy to reach because of the graphical interface.



Special Features:

Dual Channel Output

Both output channels can be configured separately.



Flexible arbitrary waveforms

The instrument has 48 built-in arbitrary waves (contains DC) which including common, math, engineering, window function and other common waves.



Precise amplitude adjustment

2 mV minimum range (50 Ω)



Precise frequency adjustment

1 µHz frequency resolution



Built-in Frequency Counter

The counter can be used to measure frequency, period, duty cycle, positive pulse width and negative pulse width within the range of 100 mHz to 200 MHz.



Filesystem and USB Stick Support

The devices have a filesystem for the storage of waveforms in the internal memory or on USB sticks.



Integrated Helpsystem

The integrated helpfunction will show descriptions of single functions and step-by-step instructions for often used tasks.



Specifications:



Generator

Function / Waveform Generator Rigol DG1022

Display

Monochrome LCD

Resolution

256 × 64 Pixel

Interfaces

- USB-Host (for USB stick i.e. to save/load waveforms)

- USB for a PC connection

Dimensions

232 mm × 288 mm × 108 mm

(9.13" × 11.34" × 4.25")

Weight

2.7 kg (5.95 lbs)

Supported operation systems

Windows XP (32Bit + 64Bit), Vista (32Bit + 64Bit), Windows 7 (32Bit + 64Bit)





Function

Function / Waveform Generator Rigol DG1022

Channels

2

Signal Output

Sine, Rectangle, Pulse, Ramp, 48 predefined arbitrary Waveforms, freely definineable arbitrary Waveforms, Noise

Vertical Resolution

14 bit (Channel 1)

10 bit (Channel 2)

Amplitudes

Channel 1:

2 mVpp ~ 10 Vpp (50 Ω)

4 mVpp ~ 20 Vpp (high impedance)

Channel 2:

2 mVpp ~ 3 Vpp (50 Ω)

4 mVpp ~ 6 Vpp (high impedance)

DC Offset











Channel 1:

±5 V (50 Ω)

±10 V (high impedance)

Channel 2:

±1.5 V (50 Ω)

±3 V (high impedance)

Sample Rate

100 MSa/s

Frequency Range Sine

1 µHz - 20 MHz

Frequency Range Rectangle

1 µHz - 5 MHz

Frequency Range Pulse

500 µHz - 3 MHz

Frequency Range Ramp

1 µHz - 150 KHz

Frequency Range Arbitrary

1 µHz - 5 MHz

Frequency Range Noise

5 MHz (-3db)

Resolution

1 µHz
