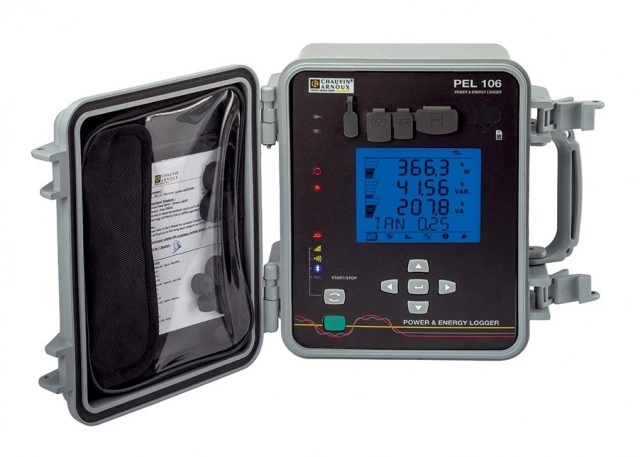

 PEL106 POWER ENERGY LOGGER images




PEL106 POWER ENERGY LOGGER

: PEL 106

Product Description

Highlights

• IP67 all-terrain casing resistant to shock, UV light and high temperatures
• Communication via Wifi, 3G-UMTS/GPRS, LAN (Ethernet), Bluetooth and USB
• Self-powered via its voltage inputs up to 1,000 V
• Continuous recording with an interval of 200 ms between measurements
• Measurements as per the IEEE 1459 standard
• 4 voltage inputs & 4 current inputs
• Ideal for installation on electricity poles

Description

The PEL106 power logger measures and records all the useful data for energy consumption diagnostics. The PEL106 can be used without cutting off the mains power supply.

Ergonomics
Rugged thanks to its IP67 all-terrain casing, the PEL106 can be transported anywhere. It is equipped with 4 voltage channels and 4 current channels.
No more battery problems: this logger is self-powered directly via the phase.
The LCD screen with backlighting and a quadruple digital display is particularly easy to read. The PEL 106 is equipped with an SD/SD-HC card for backup of the data from several months or even years.

Measurements
Suitable for all types of electrical networks, the PEL106 automatically recognizes the sensors connected. It measures voltage up 1,000 VAC/VDC and current up to 10 kVAC / 5 kVDC. Its wide measurement ranges enable it to record power values up to 10 GW/Gvar/GVA, and energy up to 4 EWh/EVAh/Evarh.
It is equipped with an Alarm mode. The user can define limits and a list of events is recorded.

Analogue measurements
When used with remote L452 loggers, the PEL106 can recording external parameters such as the temperature, pressure, engine torque, etc., and thus refine the analysis if you are troubleshooting malfunctions, for example. This function on the PEL106 is ideal for applications involving new energies such as wind (electrical energy linked to the strength of the wind).

Ultra-communicating
The PEL106 is equipped with multiple communication modes: USB, Ethernet, Bluetooth, Wifi and 3G/GPRS. The new 3G/GPRS mode allows users to insert a SIM card in the PEL for remote connection via a GSM. When an alarm is triggered, users can automatically receive an email alert.
When access to the PEL106 is complex due to protective measures on secure IT networks, the measurements can be viewed via an IRD server.

Software
The PEL Transfer software can be used to analyse the data recorded with the PEL100 models. On the basis of the power measurement campaigns performed, the software automatically provides a breakdown of the losses detected.
New: the software directly calculates the cost of the power consumed and gives the result in the local currency selected.
The DATAVIEW software platform can be used to generate reports. Users can set alarm thresholds on the various measurements made in order to obtain a customized measurement report.

Additional specifications:
Acquisition interval from 200ms
Voltages, current
Active, apparent and reactive power values
Phase: cos phi, tan PHI, PF
THD Harmonics
IP67 closed, IP54 open

Download Brochure / Specifications :

PEL100 Specifications Download

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Loggers

Manufacturer: CHAUVIN ARNOUX

Product code - SKU: PEL 106
