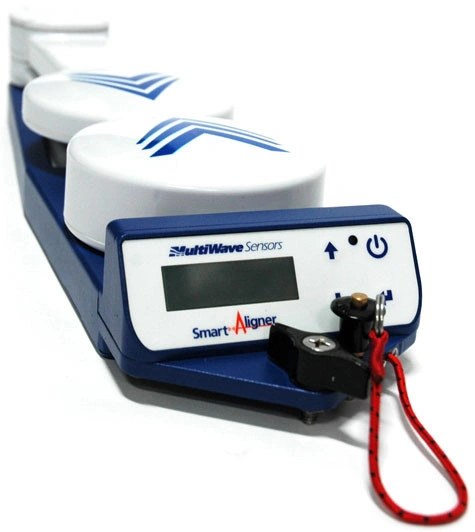

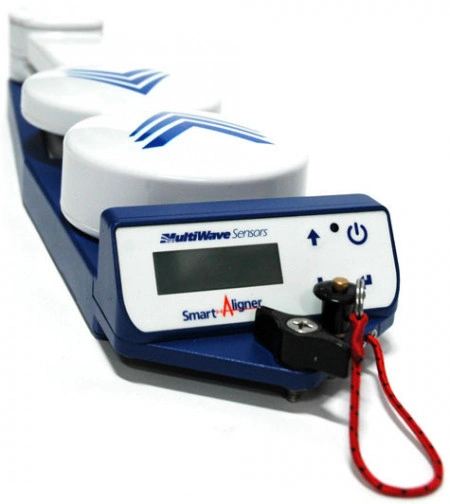

Multiwave Smart Aligner System
SKU: Smart Aligner System
Product description
The Smart Aligner is the smallest and most powerful Antenna Alignment Tool on the market. Compact design, exceptional performance, multiple configurations and smart phone enabled makes it the smartest choice for aligning your antennas.
The incorporated GPS technology and sophisticated sensors calculate Azimuth, Tilt, Roll, Location and AGL of an antenna under the most demanding conditions.
Smart Design

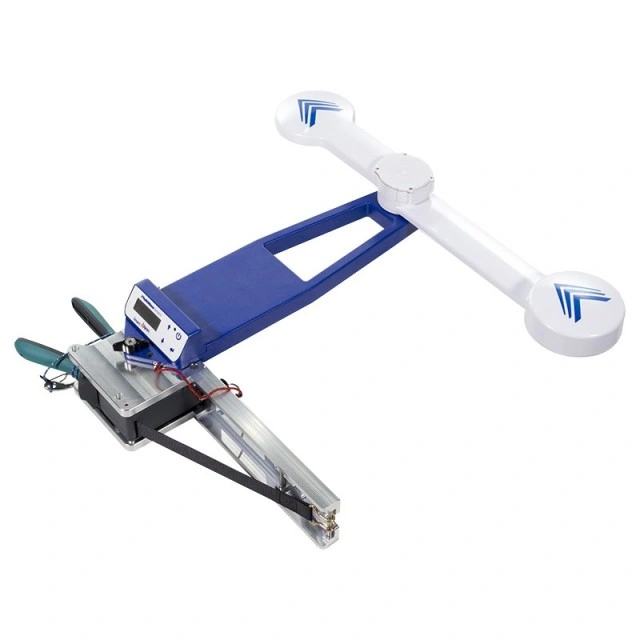

- Foldable GPS Antenna Alignment Tool
- Tool and Bracket fit into optional ruggedized carrying case
- Easy to travel with, carry and transport
- Fits into provided Tool Bag for easy transport up the tower
- Weighs only 8 pounds (Tool & Bracket)
Smart Performance
- Typical 0.5o degree Azimuth accuracy
- Tilt and Roll accuracy of 0.2o
- Enhanced RF shielding
- GLONASS enabled for increased performance
- Fast acquisition time
Smart Configuration.
- Universal Mounting Bracket
- 18 antenna mounting positions for the most demanding spatial and RF conditions
- Automatically calculates Azimuth, Tilt and Roll offsets for any configuration
- Most antennas can be aligned without additional brackets
- Optional inserts for Ericsson AIR antennas. Custom inserts available for other types of antennas
Technical Specifications
PERFORMANCE
Azimuth accuracy: 0.5o
Tilt and Roll accuracy: 0.2o
Position accuracy: 60 cm with SBAS
Start up time: < 30 seconds
POWER
Internal battery: Rechargeable lithium ion
Operation time: >10 hrs (over 100 alignments)
Battery charger: AC wall charger and DC car charger
PHYSICAL
Smart Aligner Tool (patented)
Dimensions: 19″ x 4.5″ x 3″ (48.3 cm x 11.4 cm x 7.6 cm)
Weight: 4 lb (1.8 kg)
Universal Mounting Bracket (patented)
Dimensions: 19″ x 5″ x 3″ (48.3 cm x 12.7 cm x 7.6 cm)
Weight: 4 lb (1.8 kg)
Tool Bag
Heavy Duty Tool Bag with connection points for carrying the Smart Aligner Tool
Ruggedized Carrying Case
Dimensions: 21″ x 16″ x 8.5″ (53.3 cm x 40.6 cm x 21.6 cm)
Weight: 12 lb (5.4 kg)
TOTAL WEIGHT 20 lb (9.1 kg)
COMMUNICATION PORTS
LED backlit display: User interface and display
Wireless to user’s mobile device
Connectivity: Smartphone/Tablet – iOS or Android
Cable interface: Serial RS-232
ON BOARD STORAGE
Save alignment results on Tool
Playback alignment results to App and create Reports
REPORTING
Report formats: JPEG (screenshot), PDF or CSV
Photos: Embedded in PDF report
Photos can also be used as a backup, by taking a picture of the User Display.
Photos are date and time stamped
Other and Custom Report types available (contact for details)
Azimuth accuracy: 0.5o
Tilt and Roll accuracy: 0.2o
Position accuracy: 60 cm with SBAS
Start up time: < 30 seconds
POWER
Internal battery: Rechargeable lithium ion
Operation time: >10 hrs (over 100 alignments)
Battery charger: AC wall charger and DC car charger
PHYSICAL
Smart Aligner Tool (patented)
Dimensions: 19″ x 4.5″ x 3″ (48.3 cm x 11.4 cm x 7.6 cm)
Weight: 4 lb (1.8 kg)
Universal Mounting Bracket (patented)
Dimensions: 19″ x 5″ x 3″ (48.3 cm x 12.7 cm x 7.6 cm)
Weight: 4 lb (1.8 kg)
Tool Bag
Heavy Duty Tool Bag with connection points for carrying the Smart Aligner Tool
Ruggedized Carrying Case
Dimensions: 21″ x 16″ x 8.5″ (53.3 cm x 40.6 cm x 21.6 cm)
Weight: 12 lb (5.4 kg)
TOTAL WEIGHT 20 lb (9.1 kg)
COMMUNICATION PORTS
LED backlit display: User interface and display
Wireless to user’s mobile device
Connectivity: Smartphone/Tablet – iOS or Android
Cable interface: Serial RS-232
ON BOARD STORAGE
Save alignment results on Tool
Playback alignment results to App and create Reports
REPORTING
Report formats: JPEG (screenshot), PDF or CSV
Photos: Embedded in PDF report
Photos can also be used as a backup, by taking a picture of the User Display.
Photos are date and time stamped
Other and Custom Report types available (contact for details)
OPTIONS
– AIR21 Insert
– AIR32 Insert
– GoGo Bracket
– Carrying Case
– Laser Rangefinder for AGL
– Dish Bracket System
– Line of Sight Alignment Bracket
– RF Elements Mounting Bracket
– Nokia FASB Insert
– Dish Adapter
ENVIRONMENTAL
Operational temp: -22 ℉ to +158 ℉ (-30 ℃ to + 70 ℃)
Sealing: NEMA 4X, IP63
Shock/vibration: IEC 68-2-27 / IEC 68-2-6
EMI: FCC Part 15 Subpart B: 2008 and ICES-003:2004
MOUNTING CONFIGURATIONS TO ANTENNA
Multiple offset positions from bracket: forward, side, backwards on left or right side of antenna
Multiple arm positions: user can orientate the arms according to physical limitations
Intelligent configuration detection: Automatically calculates Azimuth, Tilt and Roll offsets
Number of mounting configurations: 18
MODES OF USE (Smart Aligner App)
Quick measure: real time display of antenna orientation information with option to save a screenshot of the data
Site survey: set up of site and antenna information
Align antenna: real time display of antenna orientation information with option
to verify the alignment
Verify: verify the alignment – ability to save the alignment information after verification
Report mode: create PDF reports from verified alignments or historically saved sites
– automatic attachment to email message
Import profiles: import CSV file with site and antenna information
Export profiles: export completed CSV file with appended measured alignment information
– automatic attachment to email message
Tone Align: Audio cue for easier alignment. High pitch beep when at target azimuth
Manual Tilt/Roll: enter Tilt and Roll manually if required to use another measurement instrument
MICROWAVE AZIMUTH PATH CALCULATOR
Calculate azimuth required for aiming to transmitter/receiver radio
– AIR21 Insert
– AIR32 Insert
– GoGo Bracket
– Carrying Case
– Laser Rangefinder for AGL
– Dish Bracket System
– Line of Sight Alignment Bracket
– RF Elements Mounting Bracket
– Nokia FASB Insert
– Dish Adapter
ENVIRONMENTAL
Operational temp: -22 ℉ to +158 ℉ (-30 ℃ to + 70 ℃)
Sealing: NEMA 4X, IP63
Shock/vibration: IEC 68-2-27 / IEC 68-2-6
EMI: FCC Part 15 Subpart B: 2008 and ICES-003:2004
MOUNTING CONFIGURATIONS TO ANTENNA
Multiple offset positions from bracket: forward, side, backwards on left or right side of antenna
Multiple arm positions: user can orientate the arms according to physical limitations
Intelligent configuration detection: Automatically calculates Azimuth, Tilt and Roll offsets
Number of mounting configurations: 18
MODES OF USE (Smart Aligner App)
Quick measure: real time display of antenna orientation information with option to save a screenshot of the data
Site survey: set up of site and antenna information
Align antenna: real time display of antenna orientation information with option
to verify the alignment
Verify: verify the alignment – ability to save the alignment information after verification
Report mode: create PDF reports from verified alignments or historically saved sites
– automatic attachment to email message
Import profiles: import CSV file with site and antenna information
Export profiles: export completed CSV file with appended measured alignment information
– automatic attachment to email message
Tone Align: Audio cue for easier alignment. High pitch beep when at target azimuth
Manual Tilt/Roll: enter Tilt and Roll manually if required to use another measurement instrument
MICROWAVE AZIMUTH PATH CALCULATOR
Calculate azimuth required for aiming to transmitter/receiver radio
Training Courses
Aligning Microwave Dishes Course
Universal Bracket and Inserts Course
