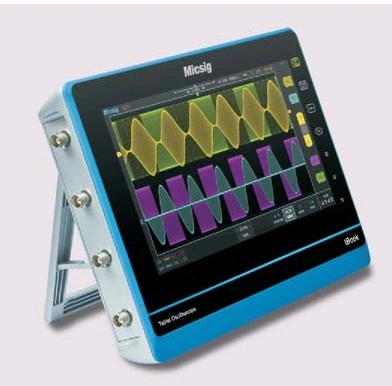

 Micsig digital Oscilloscope images




Micsig digital Oscilloscope

Model    TO102
 TO104
TO102A
 TO104A
TO152
 TO154
  TO152A
  TO154A
TO202
TO204
TO202A
TO204A
Bandwidth 100MHz 100MHz 150MHz 150MHz 200MHz 200MHz
Risetime <=3.5ns <=3.5ns <=2.3ns <=2.3ns <=1.75ns <=1.75ns
Real time
sampling rate
1GSa/s 2GSa/s 1GSa/s 2GSa/s 1GSa/s 2GSa/s
Memory depth 18Mpts 90Mpts 18Mpts 90Mpts 18Mpts 90Mpts
Waveform capture rate 250,000wfm/s 500,000wfm/s 250,000wfm/s 500,000wfm/s 250,000wfm/s 500,000wfm/s
Channels       2/4
Display screen     10.1"TFT LED Multi point touchalble capacitive screen,Resolution:1024*600
Operation      Mouse,Multi-touch:tap,swipe,pinch
Time base range     2ns/div to 1000s/div for TO***model, 1ns/div to 1000s/div for TO***A model
Vertical resolution      8bit
Vertical Scale      2mV/div to 5V/div
Triggger types     Edge,Pulse,Logic
Automatic measurements     Period, Frequency, Risetime, Falltime, Delay, PDC, NDC, PPW, NPW, BPW, POS, NOS, Phase, PKPK, Amp., Height, Low, Max, Min, RMS,
    CRMS, Mean, CMean
Math operation      +,-,*,/,FFT
FFT window function      Rectangular, Hamming, Hanning, Blackman
I/o port      USB Host, USB Device
Built-in storage      4G
Dimensions and weight      275mm*210mm*60mm,1770g




Standard Accessories


Item Description
USB Cable Connect scope with PC
Probe Standard passive, bandwidth and quantity depend on model
Power adapter For charging
USB calibration connect board Probe compensation
Documents Product Quick Guide, Safety Information,Packing List, Calibration Certificate, Quick Start
