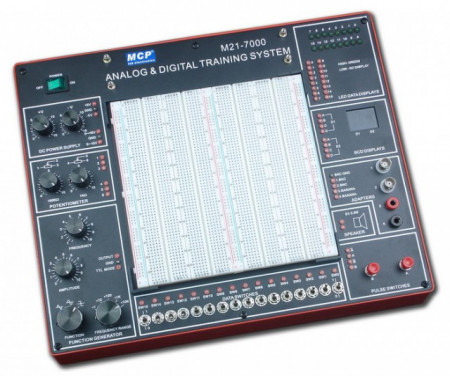

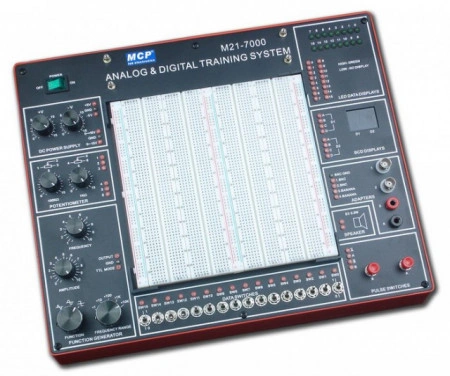

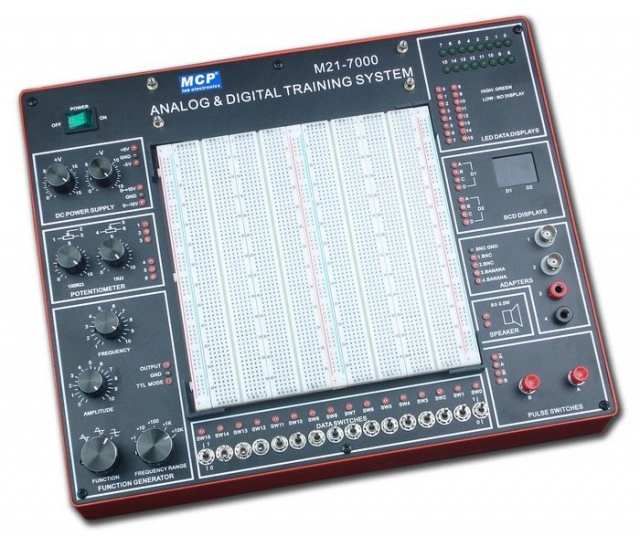

 M21-7000 DIGITAL-ANALOG TRAINING SYSTEM images




M21-7000 DIGITAL-ANALOG TRAINING SYSTEM

: M21-7000

Product Description

Features
. High level, high quality digital-analog trainer
. Combines all essential function of analog and digital experiment
. With removable breadboard, DC power supply,function generator, two pulse switches, 2 1/4 inch 8 ohm 0.25W speaker and etc.

Specifications

M21-7000

SOLDERLESS BREADBOARD

SOLDERLESS BREADBOARD

Interconnected with 2820 tie points nickel plated contact,fitted all DIP sizes and all components with lead and solid wire AWG # 22-30 (0.3-0.8mm).It can be changed and replaced for different purpose and can be connected with demonstration panel. Therefore, it is very convenient for both teachers and students.
DC POWER SUPPLY
A.Fixed DC output +5V, 1A
B.Fixed DC output -5V, 1 A.
C.Variable DC output 0V to +15V, 1 A.
D.Variable DC output 0V to –15V, 1 A.

POTENTION METERS

A. Variable resistor VR1 1kΩ
B. Variable resistor VR2 100kΩ
FUNCTION GENERATOR
Frequency range 1Hz-10Hz
10Hz-100Hz
100Hz-1kHz
1kHz-10kHz
10kHz-100kHz
Amplitude Sine wave output:0-10 Vpp variable
Triangle wave output:0-10 Vpp variable
Square wave output:0-10 Vpp variable
TTL mode output:4 Vpp

TWO DIGITS OF 7 SEGMENT LED DISPLAY

TWO PULSE SWITCH
TWO PULSE SWITCH 2pcs pushbuttons contain switches debouncer for eliminating the bounce caused by switch from“open” to “close”or from“close” to“open”position.
SIXTEEN DATA SWITCHES
SIXTEEN DATA SWITCHES 16pcs toggle switches and corresponding output point.When switch is set at “down”position,the output isLO level; contrarily, it is to be HI level while setting at “up”position.
SPEAKER
SPEAKER 2-1/2 inch diameter, 8 ohm/0.5W to be used for load.
FOUR CHANNEL ADAPTOR
FOUR CHANNEL ADAPTOR Both of the two banana sockets' and two BNC jacks' point tips are changeable. It is suitable for M21-7000 to be connected with peripherals.
SIXTEEN BITS LED DISPLAY
SIXTEEN BITS LED DISPLAY 16 red LED's separate input terminals. The LED will be lighted up when input is at “HI level” ,and it will be turned off when it is at no input or at “LO level”.
UNIVERSAL CONNECTOR FIXED HOLDER

It reserves universal connector fixed holder on the panel in order to be connected with various universal connectors,
which are available

(1) Straight header 60 pin
(2) Card edge connector 2.54mm 62pin
(3) D sub25 pin connector, male & female
(4) Card edge connector 3.96mm 56pin
(5) Dip sockets connector 28 pin & 40 pin
OTHER STANDARD ACCESSORIES (1) Power cord
(2) Pin : 10pcs
(3).User manual
DIMENSIONS & WEIGHT 258 x 95 x 334mm(WxHxD)
Approx 4.5kg
