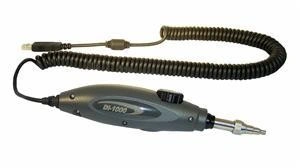

 Lightel DI-1000-B2 Digital Inspection Probe images




Lightel DI-1000-B2 Digital Inspection Probe

: DI-1000-B2

Lightel DI-1000-B2 Digital Inspection Probe

Product Description:

The ergonomically designed DI-1000 is Lightel's all digital video microscope probe. It connects directly to your PC through the computer's USB2.0 port. Featuring easy single finger focusing, a built-in image freeze/capture button, and detectable resolution to 0.5µm, the DI-1000 package includes our free ConnectorViewTM (standard) software, providing digital zoom, image display, image capture, auto-calibration and basic analysis tools.

The DI-1000 uses Series 2 inspection tips and can also use all our CI-1000 tips with an optional adapter.

Our optional ConnectorView Plus analytical software adds Pass/Fail analysis and detailed reporting capabilities to the DI-1000.

Features:

• Fast, easy focus

• One hand operation

• Inspect patchcords (male) and in-adapter connectors (female)

• Direct USB2.0 connection to PC

• Powered by USB connection

• Built-in freeze/capture button

• Slim ergonomic design

• Rapid tip change

• Comprehensive line of tips

• Free image capture and software included

• Digital zoom

•Pass/Fail analytical software option available

Specifications:

General

Field of View

~ 425µm x 320µm high magnification version
~ 620µm x 480µm wide view version

Resolution

0.5µm detectable

Operating Temperature

0°C to 50°C

Storage Temperature

-20°C to 70°C

Focus

Manual adjustment, 2mm max travel

Dimensions

35mm diameter x 175mm length (without tip)

Light source

Blue LED

Power Supply

USB port of PC



Package

Description



1 USB2.0 digital inspection probe



1 Universal tip for 2.5mm male PC type connectors



1 Universal tip for 1.25mm male PC type connectors

DI-1000-B2

1 Tip for SC and FC female PC type connectors



1 Tip for LC female PC type connectors



1 Small tip box



1 Soft carrying case for DI-1000



1 ConnectorView (Standard) software CD and manual



Key Options

ConnectorView Plus software

Pass/Fail analytical and reporting software for a Windows® PC

"Hot" fiber filter

Inspect live fiber connectors. Useable to at least 20dBm. (Higher power would not damage the unit, but may not provide useful images.)

Tip adapter

Use any CI-1000 tip with the CI-1100



Data Sheet

Lightel DI-1000-B2 Digital Inspection Probe Data Sheet
