 HUXSCOPE-WiFiTM Fiber Optic Microscope / Inspector images


Pin It

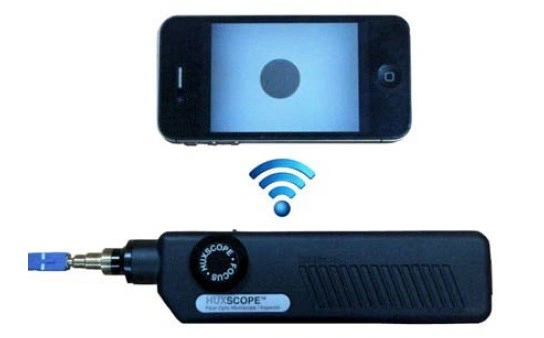

HUXSCOPE-WiFiTM Fiber Optic Microscope / Inspector

SKU: HUXSCOPE-WiFiTM Fiber Optic Microscope / Inspector South

HUXSCOPE-WiFiTM
Fiber Optic Microscope / Inspector

Product Description

HUXSCOPE-WiFi is communicated with Apple iOS and Android Smartphone (WiFi) as well as PC/Laptop (USB) and it is a very useful  device to inspect fiber optic ferrule in field. HUXScope-WiFi has Pass/Fail Analysis Software and it is does not need exterior Wireless AP or Module

Available Applications

• Fiber Optic System / Sub-system with Fiber Networks

•  Fiber Optic Module included Transceivers, SFP, etc.

•  Test Equipment and Distribution Patch Panels

•  Fiber Optic Components like Attenuators, Inside Adaptors



Key Features

• WiFi and USB connection to Smartphone and PC

• Android app and iOS (Apple) App both

• Pass/Fail Analysis to IEC 61300-3-35

• Available several connector & adaptor  types Tips

(Both Female / Male Tip)

• External Interface: mini 5-pin type

• Save inspected images and reports

• Real-time report in field through Smartphone

• Built-in rechargeable battery

• No need for exterior Wireless AP or Module



Standard Package

• Handset (included WiFi)

• AC Battery Charger incl. USB to mini 5-pin cable

• Software (Pass/Fail Analysis)

• Tip for female SC/PC and FC/PC

• Tip for female LC/PC

• Manual

[Female Tip is to inspect ferrule inside of adaptor and Male Tip is to inspect patchcord ferrule]



Specifications

Model

HUXScope-WiFi

Magnification

260X - 400X

Flied of Version

400um x 300um

Focus

Manual, Maximum 2mm in and out

WiFi

2,4GHz WiFi IEEE 802, 11b/g/n

Power of Charger

110/220V@50/60Hz Charger or USB Cable with PC

Battery

3.7V 1300mA Rechargeable Lithium Polymer Battery

Battery Running Time

Approx. 4 hours (continuous usage)

USB Cable

Mini 5-pin to USB 2.0 for Windows XP, WIN7/8

Software

For PC - Pass/Fail Analysis to IEC 61300-3-35

For Smartphone - Android App and IOS (Apple) App

Dimension

Handset (without Tip) - 185mm (L) x 24mm (T)

Weight-170g
