WHAT IS HTZ warfare?

HTZ warfare is a RADIO NETWORK PLANNING and SPECTRUM ENGINEERING SOFTWARE solution for deployment, network optimization and real-time analysis of tactical military communications.

HTZ warfare is a COMPREHENSIVE TOOL for modeling all radio communication technologies in the MF/HF/VHF/UHF/SHF/EHF frequency bands. The software includes Electronic Warfare and tactical communications functions that allow an accurate simulation of the battlefield for advanced tactical mission planning and the analysis of electromagnetic field (ELINT, COMINT).

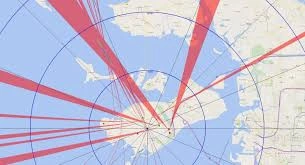

HTZ warfare offers DIRECTION FINDING, JAMMING, RADAR FEATURES, comprehensive set of radio planning capabilities that enables the design and optimization of military communication networks for frequencies ranging from 8 kHz to 1 THz.

HTZ warfare is aimed at staff at all command levels participating in ELECTROMAGNETIC SPECTRUM OPERATIONS.

HTZ warfare is a flagship military and security radio communications planning system, capable of modeling all radio communications technologies operating between about 8 kHz and 1 THz.
HTZ warfare offers the ability to model fixed and mobile radios and to model dynamic scenarios. HTZ Warfare also features powerful database capabilities, and it is possible to connect directly to the SQL database or XML file.
HTZ warfare supports different operator modes, provinding a simple interface for beginners and low-level operators, and more advanced options for more experienced operators.
HTZ warfare includes sophisticated methods of interference and jamming analysis, including the ability to assess the impact of any technology on any other technology.
HTZ warfare provides mission planning support for a wide range of activities such as setting up and managing tactical and infra radio communications networks, including Dynamic Spectrum Allocation (static / temporary / combined).

HTZ warfare FEATURES

COMMUNICATIONS ELECTRONIC WARFARE

SIMULATING RADIO NETWORKS IN THE WARFARE SAVES LIVES

HTZ warfare is the world’s most advanced battlespace RF planning and modelling software for powerful spectrum engineering in tactical mission planning and analysis.

Design and optimization of military communication networks for frequencies ranging from 10 kHz up to 450 GHz
HF, VHF/UHF, PMR, TRS, MW, Satellite, 2G to 5G, WiFi, IoT network modelling and analysis
Accurate simulation of advanced EW mission planning: jammers, radars, DF, interception, UAV/UAS
Optimize site locations, number, power, frequency and efficiency of any radio systems in defense and security networks

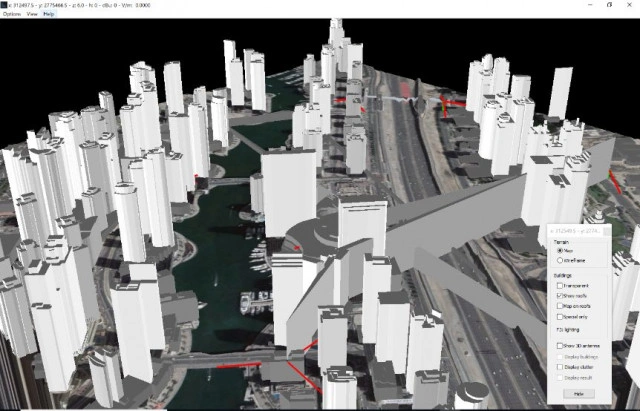

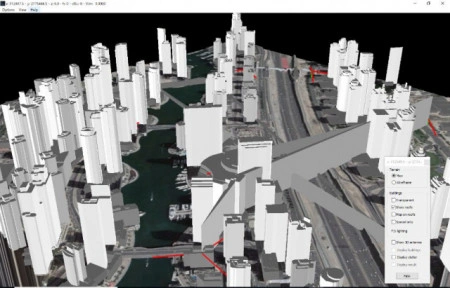

Advanced modelling of modern electronic warfare (ELINT, COMINT) battlefield in 2D/3D view
Coexistence scenarios of multiple radio systems across civilian and military networks
Out-of-band interference, inter-modulation calculations and EMC analysis
Air-to-Air, Air-to-Ground, Ground-to-Air communications modelling and analysis
Battleship interference analysis among various near-field radio systems

UAV/UAS MISSION PLANNING

HTZ warfare is the perfect choice for UAV/UAS comes network, which often required to integrate ground-to-air, air-to-air services and complex scenarios of compatibility with other civilian/military communication services.

Aeronautical propagation model ITU-R P. 528
Frequency planning and interference analysis along the way points
Self-healing network planning using mesh technique
Path specific way points coverage and optimization on fly path to overcome connectivity issues
Radar detection avoidance planning by optimization of flying path and altitude optimization
Calculate interference level due to terrestrial networks directly impacting such drones along flight-path
Instantaneous roll, pitch and course modelling; antenna orientation calculation, antenna discrimination along the flying path

MARITIME COMMUNICATION

HTZ warfare supports any communications between sea to sea, sea to air and land to sea communication in maritime communications.
The complex scenarios of coverage, interference and intermodulation impact within battleships/ships environment can be examined and simulated to ensure the radio systems in the same vessel are performing effectively and efficiently.

Near-field scenarios in Battleship: HF/VHF/UHF, radar, satellite systems intermodulation analysis
Location optimization of new radio systems against existing radios on board
3D modelling of Battleships/Ships from AutoCAD, ESRI Shape and PDF drawing
Interference analysis against terrestrial radios against satellite earth stations to identify exclusion zones

LMR/PMR/P25/TETRA

HTZ warfare is a proven radio planning solution with its high accuracy in propagation prediction.

Prospective planning to identify the best locations for new sites for greenﬁeld and densiﬁcation scenarios
Migration analysis from analogue to digital communications
Analysis of outdoor to indoor coverage by signal penetration loss calculation
Population analysis according to points, areas by vector polygon importation or raster files

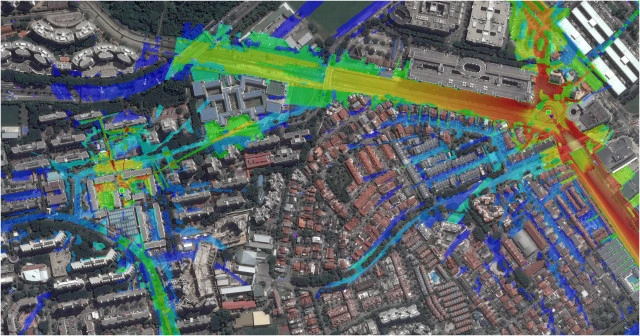

In-depth coverage study of network coverage, composite coverage, overlapping, best server and network densification
Propagation model tuning by correlation analysis between prediction and measurement
Automated frequency assignment and optimization
Traffic analysis by the ground occupancy, target areas or mesh blocks to cover
Point to Point network analysis: Path profile, Reliability, Automatic optimization of the heights, of the power, frequency and space diversity, frequency analysis
P25 Simulcast planning and analysis

PUBLIC SAFETY NETWORK /PPDR

HTZ warfare supports designing and modelling of TETRA, PMR/DMR, P25 and PS- LTE with the ability to manage coverage, capacity, site parameters and neighbour planning and optimization.

It ensures the highest level of reliability, availability and resilience of critical comms and assist operators to achieve smooth migration to broadband connectivity and new technologies.

Coverage planning
Interference calculations
Capacity planning
Automated handover, neighbour list planning and analysis
Monte Carlo simulations
Automatic site planning
Automatic site optimization
Automatic frequency planning
Traffic & mobility profile editor (end devices)

HF COVERAGE ANALYSIS

HTZ warfare is designed to predict HF Ground-wave and Sky-wave propagation parameters such as Signal to Noise Ratio (SNR), Maximum usable frequency (MUF), Frequency of Optimum Transmission (FOT), Field Strength, Reliability.

Ground-wave propagation based on ITU-R P. 368-9 using conductivity and permittivity properties of the earth to calculate path loss,
Sky-wave for LF/MF at night time using ITU-R P. 1147-2,
Downlink and uplink calculations to offer full reciprocity to users modelling mobile systems,
Study HF signal level at different time of the day at different season,
Sunspot modelling and impact on HF communication,
Calculation of minimum/maximum and optimum frequency for HF communication,
Ship transmitter modelling,
Produce H & V cuts for HF antenna using type, ground conductivity, dielectric constant and operating frequency.
ITU R-533

MICROWAVE Links

HTZ warfare enables microwave link design for networks in any frequency band; an integral propagation model library covers the frequency range 30MHz up to 300GHz.
This multi-functional tool enables users to manage multiple technologies in one project.

Profile budget calculations,
Frequency and space diversity,
Multi-K factor calculations,
Climate and rain parameters,
Reliability calculations,
Automatic antenna orientation,
Link optimization,
Automated frequency planning,
Interference calculations,
Quality objectives calculations – ITU-R F. 1703 and ITU-T G.827.

HTZ warfare is intended exclusively for the armed forces, Government security services and Telecom Defense programs. ATDI strictly follows export restrictions defined by the UN, EU, France, United Kingdom, Germany, Poland, Spain, Australia and USA.

NATO code: FA8T9

HTZ warfare current version: V22.6.8 (07-2020)
(c) 1988-2020
