HS-12Thermal Stripper for Both Single and Ribbon

SKU: HS-12Thermal Stripper for Both Single and Ribbon

Product Description

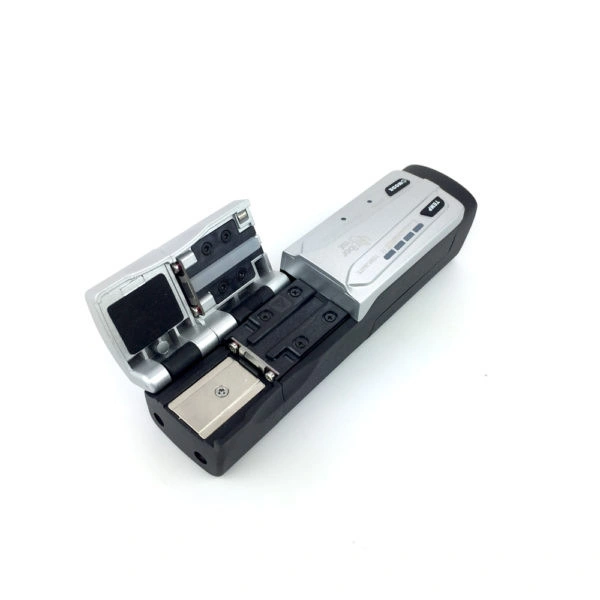

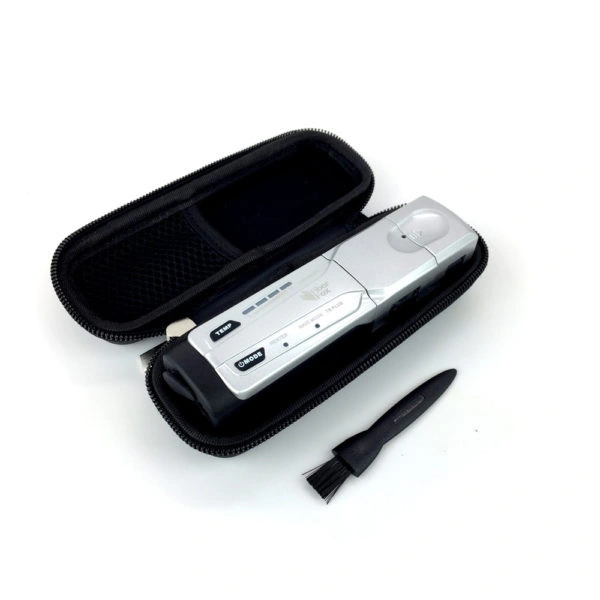

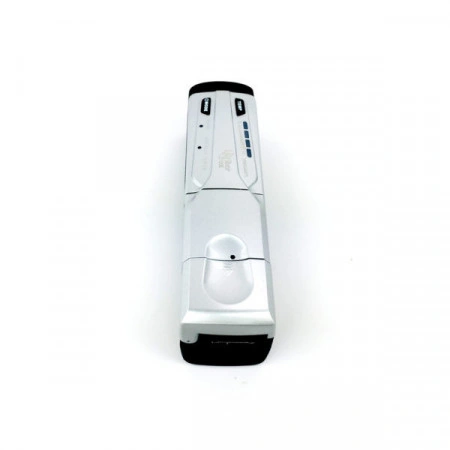

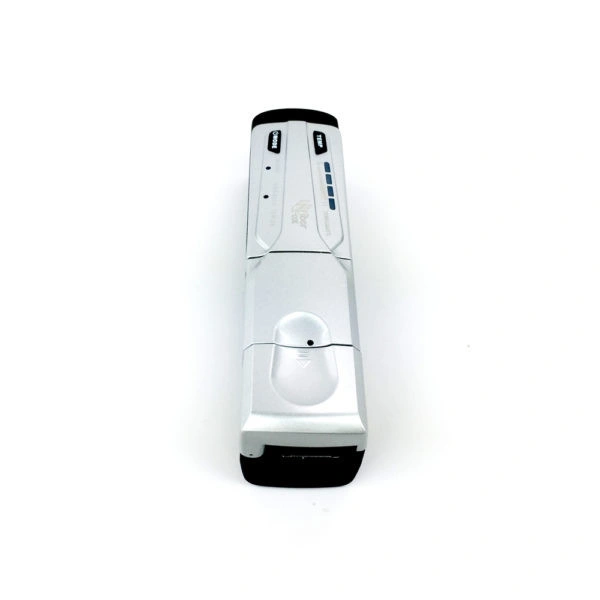

The FiberFox HS-12 newly developed hand-held thermal stripper is rugged and durable, yet small in size and light weight. Designed to strip the jacket of single fiber and ribbon cable up to 12 fibers, it offers extreme convenience under any tough environment. Benefits include fast heating time of 4 seconds and approximately 500 cycles with a fully charged battery. So easy to use that  anyone can do clear stripping with near zero failure


For Both Single and Multi-Fiber Cable Stripper

Accurate, Rugged and Easy to use!!

Features
Long-lasting Thermal Stripper for both ribbon fiber and single fiber cable
World’s fastest heating time of 4sec
Long lasting battery: Approximately. 500 times with a full charged battery by simple operation


Size and Weight
Height: 1.33 inches (34 mm)
Width: 5.47 inches (139 mm)
Depth: 1.33 inches (34 mm)
Weight: 0.66 pounds with battery (302grams)
0.57 pounds without battery (260grams
** Removable Fiber Holders are needed  (Included in a splicer kit or sold Separately)

Specification

Fiber Material Silica glass
Coating Material UV cured resin
Coating Thickness “Single fiber: 0.25~0.4mm 2 to 12 Ribbon fiber: 0.3~0.4mm”
Cladding Diameter 125μm
Coating Removal Length max 30mm
Heating Mode Normal mode / Power save mode
Temperature Settings Normal mode: approx. 80℃, 95℃, 110℃, 130℃
Power save mode: approx. 70℃, 80℃, 95℃, 110℃
Fiber Holder Type FH-2, FH-4, FH-6, FH-8, FH-10, FH-12, FH-250, FH-900,
FH-U (Universal Holder both for 250μm and 900μm)
Power Supply Method  AC drive: AC100~240V, 50/60Hz
Operating Condition Temperature: 0℃~40℃ / Humidity: 0%~95%
Applicable Fiber Type Single fiber: 250μm, 900μm, 3.0mm fiber cable and flat cable
Ribbon fiber: 2 to 12 ribbon fiber cable
Heating Time Approx. 4~5sec at normal mode
Approx. 5~6sec at save mode
Battery Capacity Approx. 500 stripping with 12 ribbon fiber with a full charged battery

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Fibre Optic

Manufacturer: FiberFox

Product code - SKU: HS-12Thermal Stripper for Both Single and Ribbon
