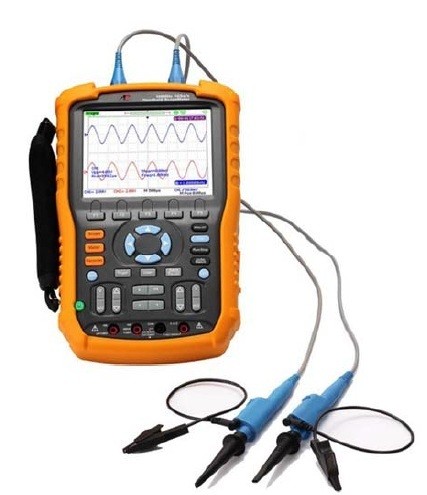

 Handheld Digital Oscilloscope ALP1102S 100MHz images


Pin It


Handheld Digital Oscilloscope ALP1102S 100MHz

SKU: ALP1102S

Handheld Digital Oscilloscope ALP1102S 100MHz

Oscilloscopes South Africa


Product Description:

Design and debug in electron circuitry

View moment signal

Industry controlling measure

Product quality control

Education and training

Serving and maintaining

Weight:1.5Kg

Size: 163.2mm×259.5mm×53.3mm



Technical Parameters:

Handheld Digital Oscilloscope

Model

ALP1102S

Bandwidth

100MHz

Rise time

≤3.5ns

Real Time Sample Rate

1GS/s

Equivalent Sample Rate

50GS/s

Vertical Sensitivity

2mV100V/div

Time Base Scale

2.5ns50s/div



Scan:100ms50s/div

Depth Memory

2M

Triggering

Edge, Pulse, Video, Alternative, Slope

Vertical Resolution

8 Bit

Hardware Counter

6 Digital Triggering Frequency Counter

Port

USB Device, USB Host

Math Operation

+,,*,/,FFT

Display

Colour TFTLCD320×240 Display



Multimeter Specification

Maximum Resolution

6000

Item

Range

Accuracy

DC Voltage

60mV 1000V

±1%±15digit

AC Voltage

60mV –750V

±1%±15digit

DC Current

60mV 10A

±1%±5digit

AC Current

60mV 10A

±1%±5digit

Capacitance

40.00nF

±3%±10digit



400.0nF400.0uF

±4%±5digit

Resistance

600Ω 60MΩ

±1%±5digit

On off Test

<50Ω

Diode

0V~2.0V

Trend Port

1.6M Points

Recorder

7M Points

Measuring Mode

Manual/Auto

Input by input port directly

300V CAT II

Input by 10:1 probe

1000V CAT III,600V CATIII

The Max input voltage of Multimeter

DC 1000V,AC 750V

The float voltage between Oscilloscope BNC

and ground

1000V CAT III,600V CATIII

The float voltage between each channel

1000V CAT III,600V CATIII

The float voltage between Multimeter and

ground

1000V CAT III,300V CATIII

Security :Isolated Handheld Digital Oscilloscope should be designed according to the standard of level II and pollution degree level II, which apply to measure 1000V;or according to the standard of level III and pollution degree level II, which apply to measure 600V



General Features

Display

Colour TFTLCD320×234 Display

Power Supply

With battery or apply DC adapter to get power from outside

Power Source

Builtin rechargeable lithium battery: 7.4V 4500mAh, Battery Last 3 hours;

Weight

1.5Kg

Size

163.2mm×259.5mm×53.3mm

Accessory

Two Passive probes, Power cable, DC adapter, Multimeter Pen



Free shipping to any address in South Africa
