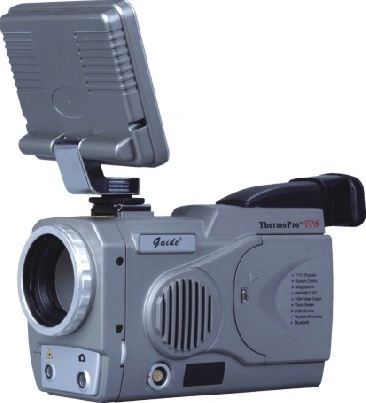

GUIDE ThermoPro TP8S Infrared Camera

SKU: ThermoPro TP8

ThermoPro TP8S



Product Description



Improved on the most advanced IR package available now, integrating multiple technologies never used in the industry, ThermoProTMTP8 is another ingenious solution Guide IR provides for professional IR thermographers around the world. In a rugged, compact and durable magnalium casing, ThermoProTMTP8 offers a wide assortment of unexpected features that enable thermographers to work with unprecedented efficiency and productivity. Exceeding all the existing IR radiometric cameras, it sets another new standard of the first-class products for the whole industry

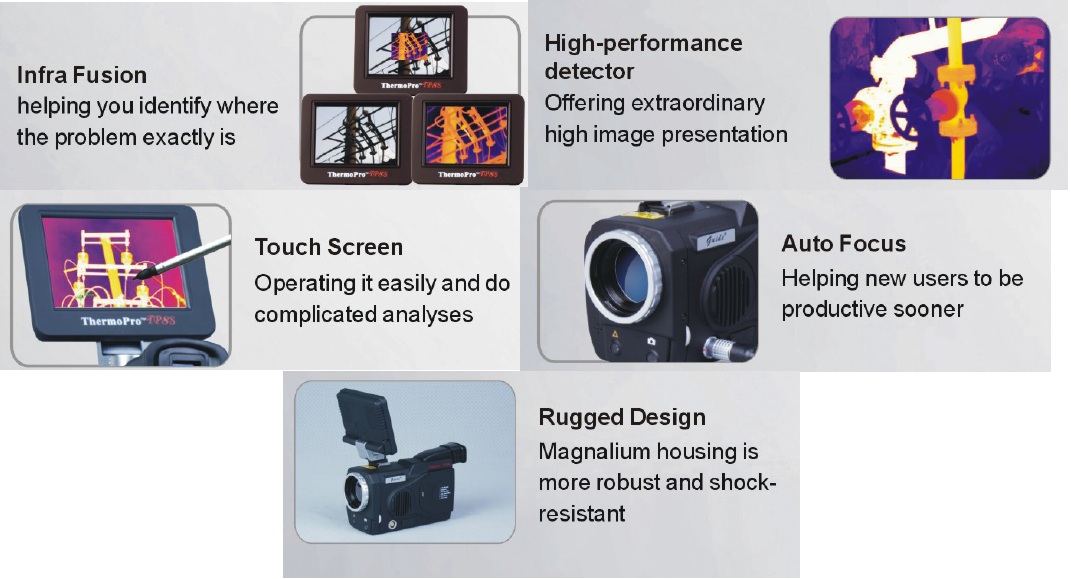

Features and Benefits

• New-generation high-performance IR detector

• Intuitive detachable touch screen& remote control handle

• High thermal sensitivity and precise temperature measurement

• High-resolution image presentation

• Real-time radiometric recording and JPEG image storage

• High-speed data transfer via USB2.0

• Synchronous video output on VGA LCD screen

• OLED viewfinder,VGA display device & TV display device

• Ultra-large-capacity 2GB SD memory card

• Compact architecture and intuitive touch screen control

• Robust post-processing software



Specifications



Imaging Performance

Detector Type

Focal plane array (FPA) uncooled Microbolometer, 384 x 288 pixels, 35 µm

Spectral Range

8~14 µm

Field of View (FOV)

Standard lens 21.7° x 16.4° /35mm

Optional wide-angle lens  45.6° x 35.0° /16mm

Optional tele lens 7.7° x 5.8° /1000mm

Thermal Sensitivity

< 0.08°C at 30°C



Image Presentation

External Display

3.5" high resolution colour VGA LCD, 640X480 pixels

Image Display

Thermal image alone/visual image alone/Picture in picture/InFraFusion

Measurement

Temperature range

-20°C - +800°C

Accuracy

±2° or ±2% of reading;

Measurement Modes

Auto hot/cold spot, auto alarm for temperature above or below; spots, areas displaying either max, min, or average, vertical & horizontal line profile, delta-t, histogram & isotherm in live/zoomed/frozen/saved image & video

Image Storage

Type

Removable 2GB SD card or built-in flash memory

Voice Annotation

Up to 60 seconds per file

Laser locator

Classification Type

Class 2 semiconductor laser

Power System

Battery Type

Rechargeable Li-ion Camcorder battery, fiel-replaceable

Battery Operating Time

Over 2.5 hours continuous operation

Environmental  Specification

Operating Temperature

-20°C ~+60°C

Storage Temperature

-20°C~+60°C

Encapsulation

IP54

Interfaces

USB 2.0

Image and real-time video

Transfer to PC, Real-Time

Control of the camera on PC

RS232

Communication

Control of the camera oon PC

Physical Characteristics

Weight

1.1kg (including battery & LCD)

Size

186mm X 106mm X 83mm (standard model)
