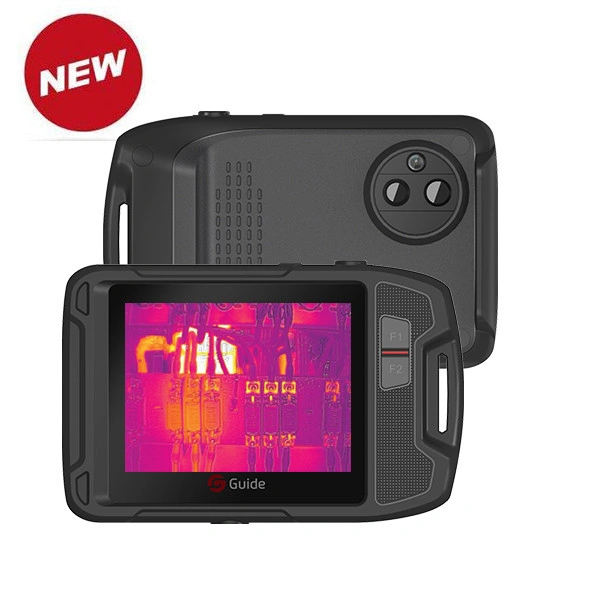

 GUIDE P Series Pocket-Sized Thermal Camera images


GUIDE P Series Pocket-Sized Thermal Camera

: GUIDE P Series Pocket-Sized Thermal Camera

Product Description

Application field: Thermography / Power system/ Solar energy / Industrial process / Building inspection

GUIDE P Series Pocket-sized Thermal Camera designed for electrical equipment maintenance and building inspection, which can fast detect the potential problems, report repair data and share images by Wi-Fi. It is a truly handy thermal camera that fits in your pockets for fast and accurate thermal inspections anytime. P Series featured with 3.5-inch LCD touchscreen for simple operation, and support picture-in-picture, smooth zoom, max and min temperature alarm, Cloud Service and more.


Reasonable Layout and Good Ergonomic Design

No interfere between lens area and grip area

Model P120V
IR image & Optical
IR Resolution 120×90 @17μm
Detector type VOx/7.5~14μm
Frame Rate 15HZ/9HZ
Thermal   Sensitivity / NETD 60   mk
Focal Length 2.28mm/F1.13
Field of   view(FOV) 50°×38°
Spatial   Resolution(IFOV) 7.6mrad
Focus Focus-free
Visible Camera
Visible   Camera Resolution 320×240, Focus-free
Flashlight Yes(on/off/flash)
Image Display
Display 3.5" LCD   touchscreen display
Display   Resolution 320×240
Image   modes IR, Visible,   Picture-in-Picture, MIF
Color   Palettes 6:Hot Iron, Black   Heat, Heat Iron, White Heat, Medical, Arctic
Digital   zoom Smooth   zoon, up to 8X

Auto,Semi-automatic,   Manual
Temperature Measurement
Measurement   Range  -20℃-150℃,100℃-400℃(Auto switching)
Accuracy ±2℃ or ±2%, whichever is greater
    ( target temp ≥0℃, ambient temp is 15℃ ~ 30℃ )
Measurement   Spot Center spot,and can add one removable   measurement spot
Measurement   Area Can add one removable   area measurment box
Auto Max & Min Temp Tracking Full   screen auto max & min temp. tracking
Analysis target (area) max & min temp.   tracking
Full   Screen Max & Min Temp. Alarm Yes
Image Storage
Storage   Media 4G   Internal memory,at least 500   sets of images
IR   Image Format Full   Radiometric (JPG)
Visible   Image Yes
Connections & Communications
USB Type-C,   for image data transmission with PC
WIFI Yes,   Wi-Fi enabled for data transmission
Mobile   APP Yes,and support Cloud Service
PC IR   Analysis Software Yes
Power system
Battery   Tpye Built-in rechargeable   li-thium battery, non- removable
Battery   Operating Time ≥2 hours(when   wifi-off)
Charging   Time ≤1.5 hours
Environmental parameters
Operating   Temperature -10℃~50℃
Storage   Temperature -40℃~70℃
Encapsulation IP54, 1-meter drop   test
Certification CE,   FCC, ROHS
Weight 240g
Size 133mm*87mm*24mm
Standard   Accessories  Charger + Adapter, TYPE-C USB cable, Wrist   Strap, Pouch, Quick start Guide, Data Download Card

*Technical parameters are subject to change without notice.
