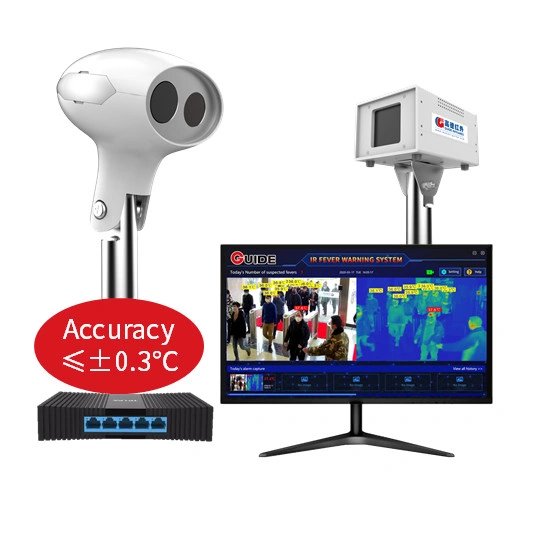

 GUIDE IR236 IR Fever Warning System images


GUIDE IR236 IR Fever Warning System

: GUIDE IR236 IR Fever Warning System

Product Description

Application field: ThermographyInspection and quarantineMedical Diagnosis
GUIDE IR236 IR Fever Warning Systems are applied to mass fever screening in crowded public places, which help to detect people with a potential fever and may contain or limit the spread of the virus through identification of infected individuals showing fever symptoms. GUIDE IR236 combines advanced technology such as thermography human body temperature measurement algorithm and AI intelligent face tracking to make the equipment accurate and easy to use.

The IR236 equipped with various powerful functions. Multi-target tracking can ensure that no targets are missed. Custom warning zones and high-temperature shielding settings can avoid interference from other high-temperature objects. When detect the febrile people, it supports automatic warning, tracking and photo taking for storage which is convenient to query and classify management. GUIDE IR236 is the ideal equipment for epidemic prevention in public places such as airports, stations, factories, schools, and commercial centers.

Higher efficiency on temperature detection, for mass fever screening

Temperature screening for multiple people at the same time, no need to stop

Real-time temperature monitoring at any point in the field of view

GUIDE IR236 IR Fever Warning System_1.png

Safer, temperature screening from several meters away

Take the temperature of passengers while they are standing or moving several meters away, avoiding the close contact required by temperature guns and reducing the risk of infection

(the picture on the left shows the comparison of the IR thermometer gun and GUIDE infrared fever screening system)

GUIDE IR236 IR Fever Warning System_2.png

Smarter, automatic tracking, warning, photo capturing for storage

Powered by the AI-enabled face tracking technology, the system can automatically focus on people's face and sound an alarm when a person with a fever is identified, giving the inspectors an effective and efficient tool to deal with densely populated and fast-moving scenarios.

GUIDE IR236 IR Fever Warning System_3.png

AI algorithm, accurate tempearture detection

In the past 20 years, through constant algorithm optimization coupled with software and hardware upgrades, especially in the field of deep learning based on the neural network, which ensure the fast and accurate temperature detection.

GUIDE IR236 IR Fever Warning System_4.png


Category Item Specification
IR detector IR resolution  400×300
Pixel size 17μm
NETD ≤40mK
Focal Length 9.7mm
FOV 38°*28°
Frame Rate 25Hz
Visible Camera Resolution 2 million pixels
Frame Rate 25Hz
Temperature Measurement Range -10℃~50℃
Accuracy ≤ ± 0.3 ℃ (ambient temperature 16 ~ 32 ℃)
Calibration Built-in shutter and external black body, automatic calibration   after selecting mode
Software functions Parameter settings Warning switch and warning threshold value, number of warning   targets, warning photos automatic clearing, shielding fixed high temperature   objects
Face tracking Intelligent face tracking, Supported from V1.0.9.0
Real-time preview Real-time preview of visible and thermal image
Real-time spot temperature detection Real-time temperature monitoring at any point in the field of   view
Automatic tracking Support automatic tracking for elevated temperatures
Automatic warning Automatic tracking, warning and photo capturing for storage when   people with fevers are identified; Warning while the Black Body is blocked.
Historical records Support query, classification and deletion of historical warning   screenshots
Video recording Support. The software needs to be upgraded to V1.1.0.9, and   equipped with NVR (NVR standard 4T hard disk), support GB28181 protocol to   access third-party platforms
Network communication protocol HTTP、RTSP
Environmental adaptability Work Temperature -10 ~ 50 ℃ (ambient temperature 16 ~ 32 ℃)
Storage Temperature -20 ℃ ~ 60 ℃
Work Humidity <90% (non-condensing)
Shock 30g 11ms, IEC60068-2-27
Vibration 10HZ ~ 150Hz ~ 10Hz 0.15mm, IEC60068-2-6
Black body Blackbody target surface uniformity ≤0.1 ℃
Temperature stability accuracy ≤ ± 0.2 ℃ (single point)
Camera head interface  Network interface Two-way, visible light 100M, infrared 1000M
Camera head power Input voltage DC 12V
input power ≤12W
Packaging specifications Camera head size 173mm×184mm×212mm
Total height (incl. stand) 2200mm
Camera head package 510mm× 440mm × 270mm (subject to actual delivery)
Total weight ≤45kg (subject to actual delivery)
