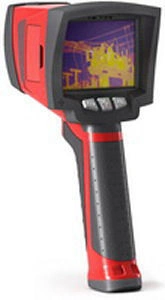

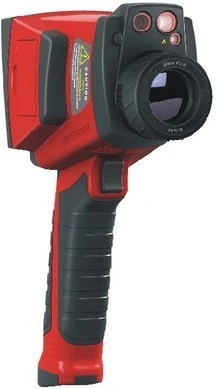

 GUIDE EASIR™-9  INFRARED CAMERA images

  • GUIDE EASIR™-9  INFRARED CAMERA images
  • GUIDE EASIR™-9  INFRARED CAMERA images

Pin It


GUIDE EASIR™-9 INFRARED CAMERA

SKU: EasIRTM-9

EasIRTM-9 is High-end infrared camera



Product Description

EasIR™-9 is a high -end infrared camera of Guide EasIR series. In a rugged and ergonomical design, it is robust and shock-resistant for any tough working enviroment. The 3-button design and navigation interface allows users' skilled operation without training. Featured with Infra Fusion technology and built-in illuminator lamp, it helps you pin-point the problem exactly in high efficiency. Using EasIR™-9, easy for your work



Features and Benefits

• Live Video recording

• Record video on board with data and time info for review and analysis

• Flexible Battery Compatibility

• Never worry about battery replacement

• Large Storage Capacity

• Benefiting from 4G SD card inside and the capability for enlarging to a larger capacity

• Large Screen Display

• The 3.6 TFT LCD delivers high resolution thermal and visual image

• Four Manual-focus Lens Optional

• Easy satisfy users for diffrent applications with minimum invest



Specifications

Thermal

Detector Type

Microbolometer UFPA 384×288 pixels,25μm

Spectral range

8~14μm

Field of View/ Focus

21.7°x16.4°/25mm,standard

Optional lens

40.53°x30.96° / 13mm,13.04°x9.8°/42mm,7.85°x5.89°/70mm

Thermal Sensitivity

≤0.08℃ at 30℃

Image Display

256 level,8 palettes(Rainbow,Iron,B&W,ETC)

Visual

Built-in digital video

CMOS Sensor,1600×1200 pixels,224 true colours

External Display

3.6″ TFT high resolution color LCD

Temperature Range

-20℃ to 250℃(400℃ , 1200 ℃ optional)

Accuracy

±2℃ or ±2% of reading

Measurement Modes

Spot analysis

Image Storage

Type

4GB SD card &built-in memory (8GB SD card optional)

File Format

Standard JPEG with records

Voice Annotation

60 seconds

System Status Indication

LCD Display

Status of battery, indication of power

Illuminator

Built-in Illuminator

3 Levels adjustable

Laser Locator

Classification

Semiconductor A1GalnP Diode Laser

Power Supply

Type

110/220V AC adaptor/ AA Alkaline battery

Operating Time

Over 2 hours continuous operation

Charging System

AC adapter or in external battery charger

Environmental Specification

Operating Temperature

-10℃ to 50℃

Storage Temperature

-20℃ to 60℃

Humidity

Operating and storing 10% to 95%, non-condensing

Encapsulation

IP54

Shock

Operational: 25g,IEC 68-2-29

Vibration

Operational: 2g,IEC 68-2-29

Drop Test

2 meters

Interface

USB 2.0

Image and real-time video transfer to PC

Real-time control of the camera on PC

Physical Characteristics

Size

182mmx112mmx252mm(with 25mm Lens)

Weight

1kg(including battery, with 25mm lens)

Colour

Yellow&blue interlaced or red&black interlaced alternative
