 Grandway Optical Talkset (OTS-4) images


Pin It

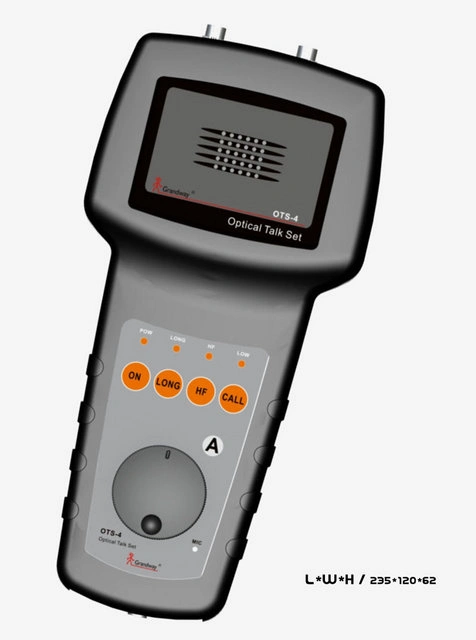

Grandway Optical Talkset (OTS-4)

SKU: Grandway Optical Talkset (OTS-4) South Africa

Grandway Optical Talkset (OTS-4)

Product Description

Main Features:
•  Energy-saving design, long-time operation
• Can be used as a steady laser source
•  Articulate voice, low background noise
•  Judgmatical calling function
•  32 steps volume control
•  Low-power alarm
•  Maximum dynamic range 50dB for long distance communication

Specification

 • Wavelength A: 1310nm, B: 1550nm

(unit A works at 1310nm, unit B works at 1550nm)
• Telecommunication system Full duplex communication
• Modulation type Simulated and Numerical
• Fiber type: SM & MM (the dynamic range will be 20db shrink with MM fiber)
• Spectral Width <15nm
• Adaptor type FC/PC SC/PC ST/PC FC/PC
• Dynamic range 45dB @1550nm
• 40dB @1310nm 50dB @1550nm
• 45dB @1310nm
• Buzzer: 16KHz carrier wave
• Output power -3 dBm
• Power supply: 9V laminated battery (AC/DC optional)
• Replaceable build-in Ni-MH battery
• Operating hours: 10 hours (standard) 40 hours (standard)
• Tri-party communication: NO YES
• Hands-free (build-in)speaker: NO YES
• Dimension: 160L*70W*20H 220*110*45
• Operating temperature -10~+50Centigrade
• Storage temperature -20~+70Centigrade
• Operating humidity <95%
• Net weight 200g (including battery) 550g (including battery)

 Standard items:

• Main units (unit A and unit B)
• FC/PC adaptor
• Protective Rubber Root
• Carrying Case
• Operating Manual
• Battery
• Headset





011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Optical Talk Sets

Brand: Grandway

Product code (SKU): Grandway Optical Talkset (OTS-4) South Africa
