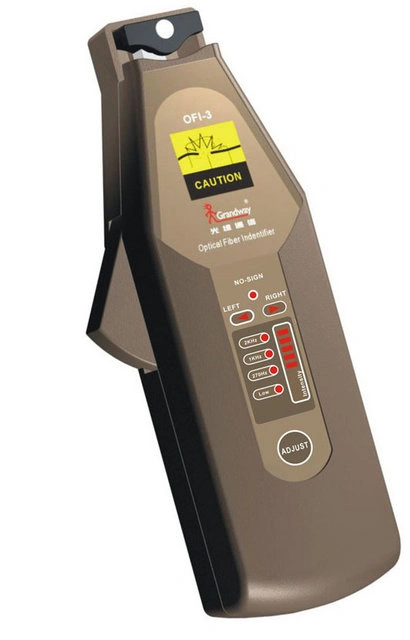

Grandway OFI-3 Optical Fiber Identifier

SKU: Grandway OFI-3 Optical Fiber Identifier

Grandway OFI-3 Optical Fiber Identifier

Product Description

The OFI-3 Optical Fiber Identifier is a low cost, portable instrument designed to detect optical signals without disrupting traffic. During maintenance, installations, rerouting or restorations, it's often necessary to isolate a specific fiber. By simply clamping the OFI-3 onto a fiber, the OFI will indicate if there is a signal, a Modulated Signal, or traffic and show signal direction.

The OFI-3 is recommended for both 0.25/0.9 mm bare fiber and 3mm jacketed fiber. When testing coated fibers, the slim design of the OFI-3 allows easier access to a splice tray where the amount of work space is limited. The clamping trigger is designed to fit the natural motion of the operator's hand. A highly impact molded plastic case makes the OFI-3 suitable for use outside plant or in the central office.

Features:
•Easy and convenient operation with a single keystroke
•Detecting three signal frequencies 2kHz, 1kHz, 270Hz
•Displaying signal intensity
•Low battery reminder
•Concise LED light
•Two 1.5 V dry batteries (Mignon AA size)
•Interchangeable adapter heads(clamps) for jacketed and coated fiber.

Specifications
•Recognizable Wavelength Range: 900 to 1650nm
•Recognizable signal type: CW, 2kHz, 1kHz, 270Hz within5%
•Detector Type: InGaAa 2pcs
•Clamp Type: H0.9/0.25 for bare fibers; H2.5 for jacketed fiber

Sensitivity:
•@ 1310nm +11dB—-25dBm (Continuous Wave);
•> -15 dBm (Modulated Signal)
•@ 1550nm +11dB—-35dBm (Continuous Wave);
> -18dBm (Modulated Signal)
•LED Indicator: Signal traffic; Signal frequency(2kHz/1kHz/270Hz);
•Signal intensity (5 grades); Low battery

General Specifications:
•Operating temperature: -10 to +50Centigrade
•Storage temperature: -20 to+70Centigrade
•Power Supply: 1. 5V AA batteries*2pcs
•Dimension (mm): 202L*62W*36H
•Weight (g): 270

Standard Items:
•Main unit
•Carrying case
•Operating Manual
•Batteries
•Two interchangeable adapter heads(clamps) for jacketed and coated fiber
