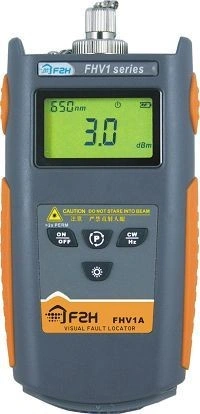

Grandway FHV1A Series Visual Fault Locator

SKU: FHV1A Series Visual Fault Locator

Grandway Visual Fault Locator

 Product Description:

The FHV1A is a compact but powerful visual fault locator, with an output power up to 8dBm, FHV1A can be used to locate sharp bends and breaks in jacked or bare fiber up to 10Km. It can also be used to identify the connectors in patch panel and identify the poor mated fibers during splicing operation.

 Features:

• 3 adjustable output power: 0, 3, 8 dBM

• Back-light LCD display

• Auto-power off



Specifications:

Item/Model No.

FHV1A

Wavelength

650±10nm

Emitter Type

LD

Connector Type

FC/PC (interchangeable SC, ST)

Modulated Frequency

2Hz

Output Power

0, 3, 8 dBM (switchable)

Power Supply

AC/Dc adaptor and Li-ion Battery

Battery Life

20 hrs. (continous operation)

Operating temperature

 -10°C~+50°C

Storage Temperature

-20°C~+70°C

Humidity

0~95% (non-condensing)

Weight

140g

Dimension

115*65*30 mm



Optional Accessories:

FC/PC, SC/PC, ST/PC interchangeable connectors. Rechargable Li-ion battery, AC adapter, carrying bag, test report, User's manual.

Optional Adapters:

FC/PC male- LC/PC female adapter
