Grandway FHP3P01

SKU: Grandway FHP3P01 PON optical power meter

Product Description

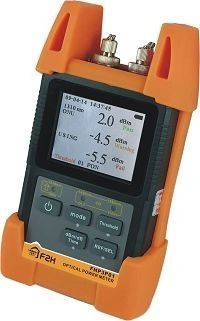

FHP3P01 is a portable, high quality PON optical power meter. It is specifically designed to meet the rapid growth of FTTx market with PON (Passive Optical Network) technologies. It is capable to measure all three signals (1310nm, 1490nm and 1550nm) that carry voice, data and video, so-called triple-play applications along a single fiber. FHP3P01 can measure not only 1490nm and 1550nm optical signal, but also accurately detect and measure the upstream burst at 1310nm sent from an ONU while the ONU is in the idle mode. The simple operation and accurate measurement make FHP3P01 becomes an ideal tool for PON (suitable for APON, BPON, EPON and GPON application) installation/acceptance test to ensure that they meet required standards, and service activation and troubleshooting.

Features

l Cost efficient palm size designed for field and lab testing
l Support P/F measurement and normal measurement
l Easy-to-use interface with large color TFT display for easy visibility and LED indicators.
l Simply connect-and-display the results of all three wavelengths (1310/1490/1550nm) of PON signals with two optical ports
l Detect and measure the upstream burst at 1310nm
l Support APON, BPON, EPON and GPON networks
l Pass, Fail and Warning indicators for easy view of signal condition
l User definable threshold value (up to 10 sets)
l Auto power shut off
l Low battery warning
l USB interface
l Real-time clock.
Unit runs either by Ni-MH battery for more than 20 hours continuously work or AC/DC adapter.

Technical Specifications



Model FHP3P01
Calibrated Wavelength 1310nm  1490nm 1550nm
Measuring Range
( continuous datastream) (dBm)
-40 to +10 -50 to +15 -50 to +20
Burst signal measuring range
( 1310nm ) (dBm)
-32 to +10
Spectral Pass-band (nm) 1260 ~ 1360 1480 ~ 1500 1539 ~ 1565
Connector Type Interchangeable FC, SC and  ST
Detector Type InGaAs
Insertion loss 1.5dB
Accuracy ± 0.5dB
Linearity ± 0.2dB
Interfaces 2 ports: one for 1310nm (ONU)
 and one for 1490nm/1550nm (OLT)
Communication port USB
Data Storage 1000 sets
Auto Power Off Yes
Back-light Yes
Refresh Rate of Display 2.5Hz
Threshold Value 10 sets (configured via PC-based software)



General  Specifications:

Operating Temperature

-10 ~ +50°C

Storage Temperature

-20 ~ +70°C

Relative Humidity

0% ~ 95% (non-condensing)

Power Supply

4 pcs 1.2V Ni-MH AA, 12V AC/DC Adaptor

Batter life

> 20 hours on typical measurement

Dimension (mm) with rubber boot on

190L x 105W x 55H

Display

2.8 inch TFT Color LCD

Net Weight

700g
