 Grandway FHP12-B images

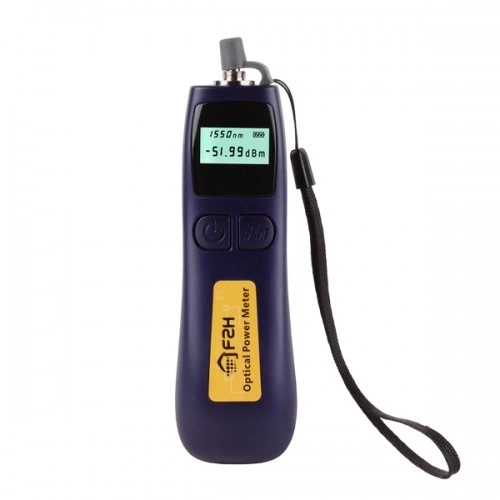

Grandway FHP12-B

: FHP12B

Product Description

FHP12 Series Mini Optical Power Meter has compact structure and stable performance and ensures high measuring precision of 850nm, 1300nnm, 1310nm, 1490nm, 1550nm and 1625nm wavelengths. Used together with Optical Laser Source, it could accurately measure the loss of fiber, cable and other passive optical devices.


Features




* Imported sensor head


* 2.5mm universal interface(support FC/SC/ST connectors)


* Low power consumption, continuous work more than 80 hours


* Linear optical power and logarithmic power display


* Automatic measuring range adjust and power remains indication


* Relative value measurement function


* Compact and portable design



Specifications


Display Range:  +26~-50dBm @1550nm
Resolution:  0.01
Calibrated Wavelength:  850/1300/1310/1550/1490/1625
Sensor Type:  InGaAs
Accuracy:  0.35dB ±10nW
Working Wavelength:  800~1700
Continuous Working Hours:  About 80 hours(stand-by time:About 1600hours)
Power Source:  2*AAA dry batteries(not included)
Working Temp.:  -10~+50°C;<90%RH
Storage Temp.:  -20~+70°C;<90%RH
Dimension:  L120mm*W33mm*H30mm / About70g


011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Power Meters and Light Sources

Manufacturer: Grandway

Product code - SKU: FHP12B
