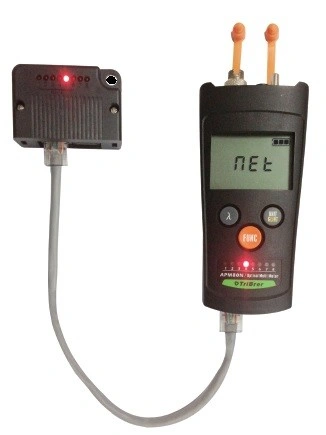

FiBrer APM80 Series Fiber & Net Cable Meter

SKU: FiBrer APM80 Series Fiber & Net Cable Meter

FiBrer APM80 Series Fiber & Net Cable Meter

Product Description

Power Meters are one of the most essential tools for all technicians installing or maintaining optical fiber networks. TriBrer power meters are well designed for all kinds of demanding applications on fiber measurement and net measurement with different functions and parameters. With a palm design, TriBrer APM80 series power meters are built for total handheld uses and pocket carrying, perfect for the FTTH in-house narrow test conditions to verify the continuity and evaluate fiber link transmission quality.



Features

• Optical Power Meter

• LED Light and "SOS" glint

• Visual Fault Locator

• Net Test (RJ45 & RJ11)

• Fiber and cable solution in one unit

• Wide measurement range, High resolution

• SM or MM applications

• 2.5mm universal

• 850/ 1300/ 1310/ 1490/ 1550/ 1625nm

• Auto power off (can be canceled)

• Power autonomy of 100 hours (OPM)



Specifications

Model

APM80T

APM80C

Display Range

1310/1490/1550/1625: +10 ~-70dBm

1310/1490/1550/1625: +26 ~-50dBm



850/1300: +10 ~ -60dBm

850/1300: +26~ - 40dBm

Accuracy *

± 0.2 dB

Calibrated Wavelengths

850nm/ 1300nm/ 1310nm/ 1490nm/ 1550nm/ 1625nm

Display Resolving Power

0.01 dB

Linearity

±0.1dB

OPM Connector

2.5mm universal and FC (SC, ST adaptor optional)

VFL Connector

2.5mm universal

LED Light

SOS code output

Net Test

RJ-45 and RJ-11

Automatic Power Off

No operation in 10 minutes (can be cancelled), Low battery

Battery Charge

Yes

Battery Life

Above 100 hours (OPM)

Power Supply

AA* 2 batteries or AC/DC power supply adapter

Size

105mm * 52mm * 34mm



* at 20±30C, CW with FC connector, -10dBm
