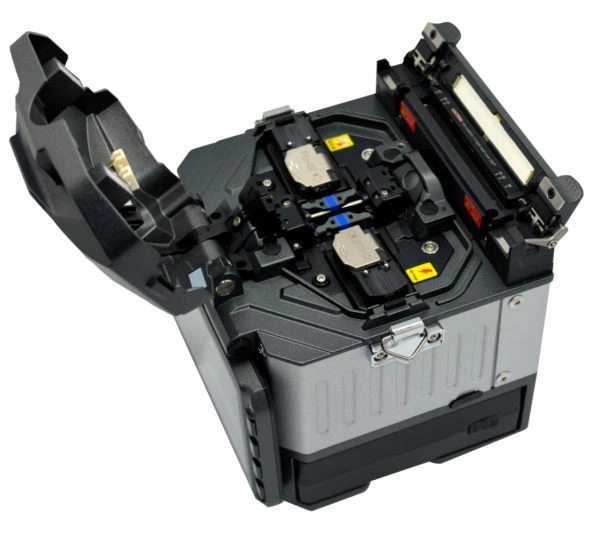

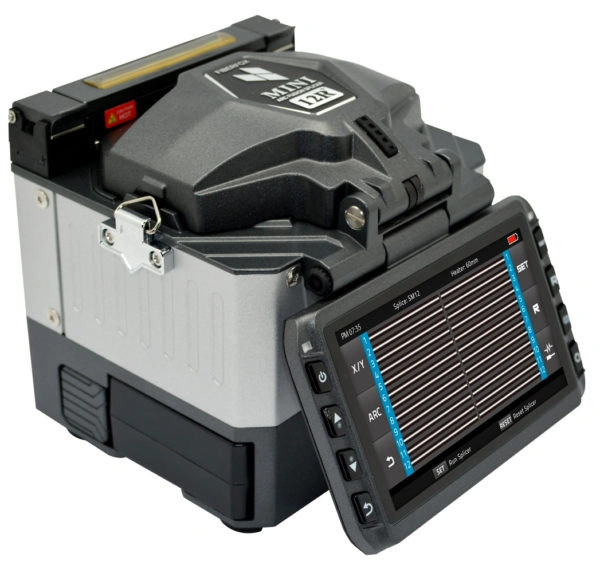

 FiberFox Mini12R Ribbon Splicer images

  • FiberFox Mini12R Ribbon Splicer images
  • FiberFox Mini12R Ribbon Splicer images



FiberFox Mini12R Ribbon Splicer

: FiberFox Mini12R

Product Description

Mini 12R+


The Smallest and the Lightest Ribbon Fiber Fusion Splicer

Size: 4.8 x 4.88 x 5.4 (in)
Weight: 2.77lbs. (w/o battery)

Fastest Splicing Time
15 sec with single mode fiber
20 sec Heating time
* 9 sec with continuous heating mode

Comes with 2 Battery Packs
Full Touch Screen
MPO SOC Compatible




Specification

Applicable Fiber SMF(G.652/657), MM(G.651), DSF(G.653), NZDS(G.655)
Fiber Count Single to 12 Rebbon Fiber
Cladding dia./Sheath dia. Single:125 / 160 to 3mm by Fiber Holder System
Riboon:125 / Ribbon Fiber Thickness 0.25 to 0.4mm
Average Slice Loss 0.03bB(SM), 0.02db(MM), 0.08dB(DS) and 0.08dB(NZDS)
Measured by cut – back method relevant ITU-T and IEC standards
Splice Mode/Heating Mode 100 Splice Modes / 32 Heating Modes
Splice Time/Heating Time 15 Sec / 20 Sec
Splice Result Data save up to 2000 Splices
Viewing Method/Magnification 2 Axis CMOS Camera with 4.3″ Color LCD / 33X and 60X Magnification
Applicable Protaction Sleeve 60mm, 40mm (2.36in, 1.57in)
No. of Splice/Heating per Battery 120 cycles with LBT-50
Electro Life 1500 Splices
LCD Screen 4.3″ Hi-Def Touch Screen w/ Temper proof glass
Optical System Direct LED (No Mirror)
Weight 2.77 lbs (without battery)
Size 4.8 x 4.88 x 5.4 (in)
Operating Environment Elevation 0-5,000 meters, 14~140˚F, 0~95% relative humidity
Storage Condition Temperature -40 to 176˚F, 0~95% relative humidity, battery -4~86˚F
Terminal USB 2.0 (Mini-B Type) for PC
Pull Test 1.96~2.25N (standard) 4.4N (Optional)

011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Fusion Splicers

Product code - SKU: FiberFox Mini12R
