SKU: Mini 6S The Smallest Core Alignment Splicer
Mini 6S The Smallest Core Alignment Splicer
Product Description
Mini 6S The Smallest Core Alignment Splicer
Characteristics
- 250 µm
- 300 µm
- 2 ~ 3 ɸ
- Indoor
- 260 cycles (splicing & heating) with two Batteries
- GUI Interface
- Tempered Glass

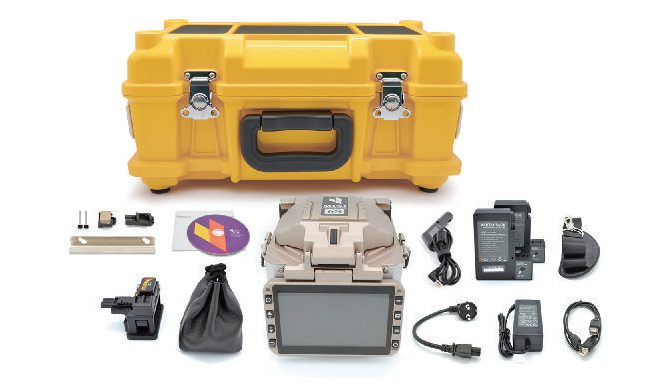

Standard Package
(1) MINI 6S Splicer
(2) MINI 50G Cleaver
(3) Cleaver Pouch
(4) Cooling Tray
(5) Spare Electrode
(6) Connector Heater Block
(7) Connector Holder
(8) Operation Manual CD
(9) Car Cigar Jack
(10) 2 Battery Packs
(11) Shoulder Strap
(12) Power Cord
(13) AC Adapter
(14) USB Cable
(15) Hand Carrying Case
Specifications
Splicing Method |
Core Alignment DWACAS (Digital wavelength Automatic Core Alignment System) |
Average Loss |
SM(0.02dB) / MM(0.01dB)/ DS (0.04dB)/ NZDS (0.04dB)/ G.657 (0,02dB) |
Return Loss |
>>60dB |
Splice Time |
9s average SM / SM 7s Quiick mode |
Electrode Lifespan |
>3,500 arcs |
Applicable Fiber |
SM (ITU-TU.625, MM (ITU-TU.651), DS (ITU-TG.653), NZDS (ITU-T.655), G657A, G657B 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT (indoor cable) |
Cleaved Length |
Coating Diameter < 0.25mm = 8-16mm, Coating Diameter > 0.25mm = 16mm minimum |
Coating Diameter |
100 -1,000um |
Cladding Diameter |
80-150um |
Heating Programs |
Factory installed mode: 9, User installable mode: 23 |
Heating Time |
Typical 18s |
Protection Sleeve |
40mm, 60mm, SOC Connector |
Data Output |
HDMI |
Splice Programs |
Factory installed mode: 33, User installable mode: 70+ |
Splice Memory |
Up to 2,000 records and 2,000 splice images |
Battery |
Typical full cycle 130 Splice and Heat / 3000mAh X 2EA |
Power Supply |
AC 100-240V input or DC 9 ~ 14V |
Monitor |
Colour 4.3" LCD monitor, with Touch Screen |
Cameras |
2 CDD camera system |
Magnification |
XY style: 150 Power, X/Y: 300 Power |
Fiber Display |
X/Y or XY, single X.Y |
Weight |
1.44Kg (Without Batterry) |
Size |
124mm x 123mm x 130mm |
Wind Protection |
The max wing speed 15m/s |
Operating Environment |
Elevation 0 - 5,000 meters, -40 ~ 800C, 0 ~ 95% relative humidity |
Storage Condition |
Temperature -40 to 800C, 0~ 95% relative humidity, battery -20 ~ 300C |
Pull Test |
1.96 ~ 2.25N Standard |
