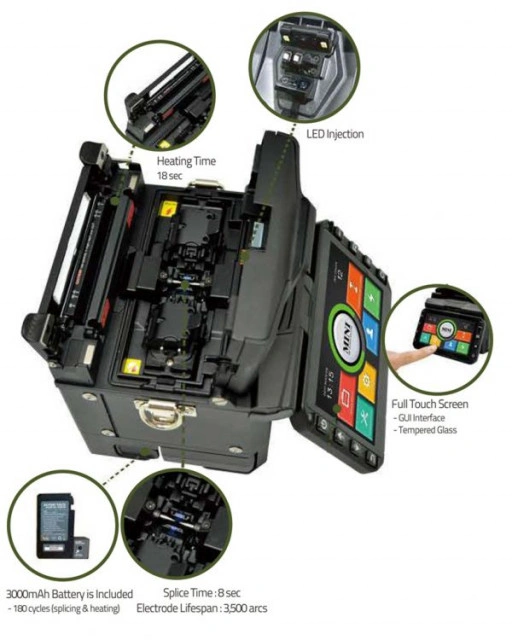

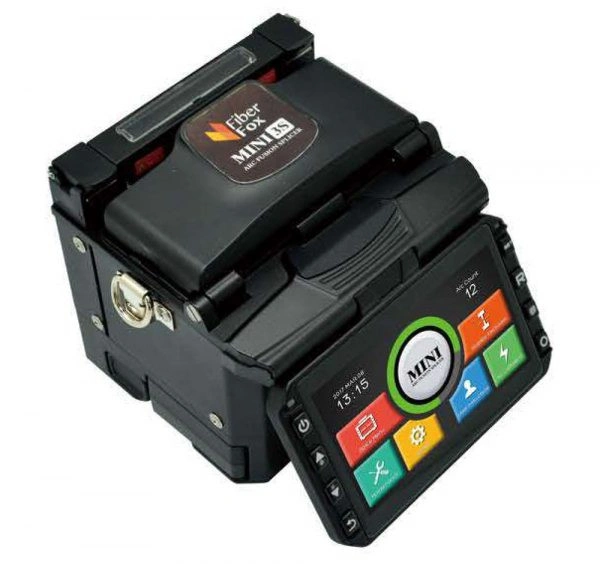

FiberFox Mini 3S Active Alignment Splicer

: FiberFox Mini 3S Active Alignment Splicer

Old price: ZAR 36,000.00 21% discount

New price: ZAR 28,347.50

The price includes the tax SA Tax 15%, shipping cost is not included

Product Description

Splicing Method: Active alignment(4motors)
Average Loss: SM:0.03dB/MM:0.02dB/DS:0.05dB/NZDS:0.05dB/G.657:0.03dB
Return Loss: >>60dB
Splice Time: 8s
Electrode Lifespan: 3500+ arcs


PRODUCT BROCHURE

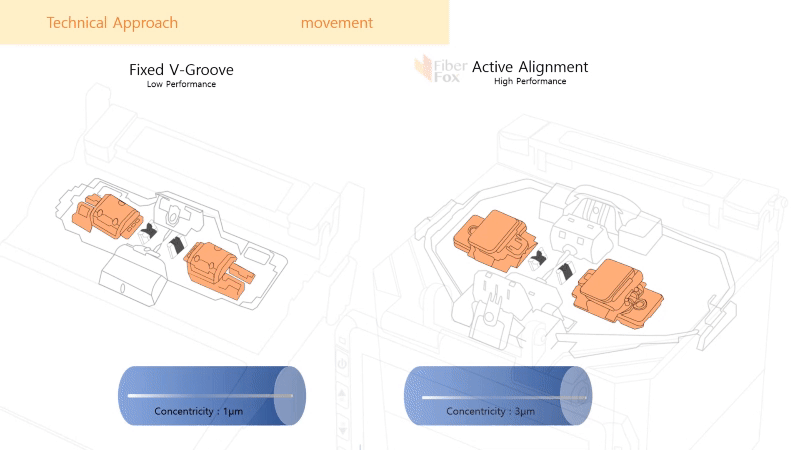

Precise


20200813-1-8

Specifications

Splicing Method: Active alignment(4motors)
Average Loss: SM:0.03dB/MM:0.02dB/DS:0.05dB/NZDS:0.05dB/G.657:0.03dB
Return Loss: >>60dB
Splice Time: 8s
Electrode Lifespan: 3500+ arcs
Applicable Fibers: SM(ITU-T G.652&G.657)/MM(ITU-T G.651)/DS(ITU-T G 653)/NZDS(ITU-T G.655)
Illumination: Red LED 2 ea, White LED 2ea
Cleaved Length: (coating)/cleave length 5~16mm
Coating Diameter: 100-1000um
Cladding Diameter: 80um ~ 150um
Heating Programs: Total 32 heating modes, preset 5 heating modes
Heating Time: 18s
Protection Sleeve: 40mm,60mm,SOC-3.0, SOC-0.9
Data Output: USB 2.0(Mini-B type) Connector for PC Communication
Splice Programs: Total 128 splice modes, preset 11 splice modes
Splice Memory: 10,000 records
Battery: 3,000mAh / Typical 180 cycles of splice / heating per battery full charge
Power Supply: AC:100 ~ 240V DC:9 ~14V
Monitor: 4.3 inches monitor
Cameras: 2 CCD camera system
Magnification: 130X magnification with 3 display modes, 260X partial magnification
Fiber Display: X/Y or XY, single X, Y
Weight: 1.35kg(include battry)
Size: 123mm x 114mm x 126mm
Wind Protection: The max wind speed 15m/s
Operating Environment: Elevation 0-5,000 meter, -10~50 , 0~95%RH relative humidity
Storage Condition: Temperature -20 to 60 , 0~95%RH relative humidity, battery -20~40
Pull Test: 1.96~2.25N (standard)

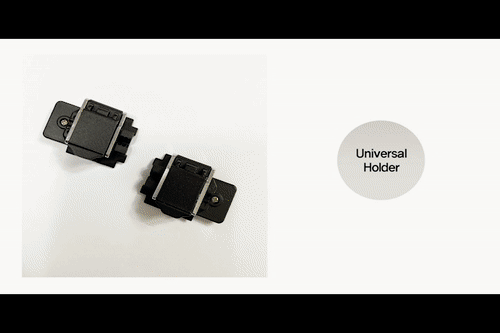

UNIVERSAL

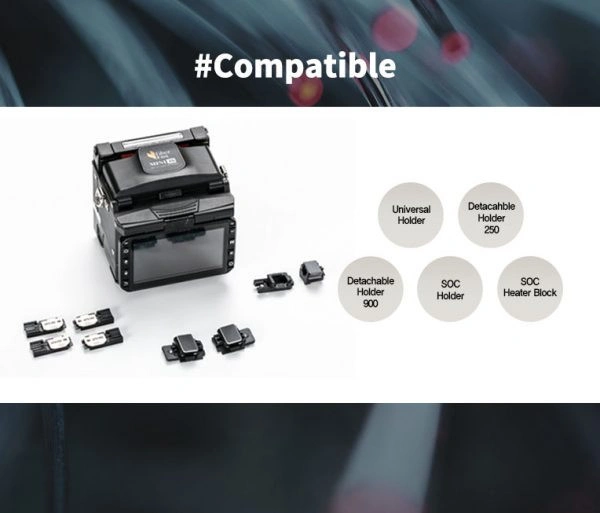

detachable

20200813-1-6
