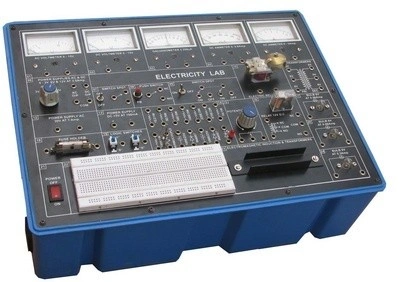

 Electricity Lab images




Electricity Lab

: Electricity Lab 33516

Bread Board Trainers

Product Description:

“Electricity Lab” is a versatile training kit for a laboratory. It is designed such that all the basic electrical circuits can be tested with the help of this trainer kit. The experiments given with training system develop mental starting from an introduction to the circuit, basic fundamentals and experiments on Ohm's Law, Magnetism, Relay, Power, Lenz's Law, Motors, Diode, Kirchoff's Law, R, L, C and many more. This simple training lab provides a strong foundation for future studies in electrical or electronics. This takes students from the basic of ohm's law, through simple series and parallel circuit analysis and into same elementary aspects of electronics where they will build circuits using capacitors and diodes. With this system a set of coils and cores are provided. These high quality coils (Labeled with number of turns) and laminated iron cores provides an effective introduction to electromagnetic theory.



Specifications:

• 01. Meters: 5 Nos.

• 1.1. AC Voltmeter : 15V

• 1.2. DC Voltmeter : 15V

• 1.3. Galvanometer : ± 250uA

• 1.4. DC Ampere Meter : 0.6Amp

• 1.5. DC Ampere Meter : 5A

• 02. Power Supply:

• 2.1. Power Supplies : 3, 6, 12Vat 3.5A

• 2.2. Power SupplyAC : 30Vat1A

• 2.3. Power SupplyDC : 5Vat100mA

• 03. Switch SPDT

• 04. Switch DPDT

• 05. Push switch

• 06. Logic Switches Two No. Push type

• 07. Relay 12VDCOne change over

• 08. Buzzer/Electric Bell

• 09. Transformer Input 6-0-6V and Output 6-0-6V

• 10. Bulb6VThree Nos.

• 11. Resistance 1E2/1W, 5E/5W, 50E/5W,100E/5W, 220E/2W, 470E/2W, 1K/1W, 100K/1W

• 12. Capacitance 1000MFD/25VTwo Nos.

• 13. Diode IN4007Two Nos.

• 14. LED5mm

• 15. Thermocouple

• 16. Potentiometer 10K

• 17. Breadboard 840Tie Points

• 18. Fuse Holder open type

• 19. Electromagnetic Induction&Transformer

 • 20. Main Supply 230VAC, 50 Hz



Accessories:

• 1. Beaker 100ml - 1 No.

• 2. Patch Cords/ Connecting Leads - 12No s.

• 3. Rods/ Strips for - 1 No. each Copper, Tin, Al, Zinc,

• Glass Brass, Carbon, Iron, Acrylic,

• Lead, Stainless Steel

• 4. Magnets - 3Nos.( Bar Type-2, Horseshoe (U) type-1)

• 5. Coils - 1 No. 100 and 200 Turns

• 6. Crocodile Clips - 1 No. red and black

• 7. Battery/ Cell with holder - 2 Nos. 1.5 V

• 8. Glass Fuses - 10 Nos. 0.5A

• 9. Compass - 1 No.

• 10. Measuring Scale - 1No.

• 11. Insulated Disc - 1 No.

• 12. Motor Assembly - 1 No. including Armature,Rotor, Brush, Motor Support,

• Iron Fillings

• 13. Helix Assembly - 1 No.

• 14. Meter Demonstration - 1 No.

• 15. Core - 1 Set of U&I with Bolt

• 16. Aluminium Ring - 1 No.

• 17. Stand - 1 No. for motor action demonstration

• 18. IC - AND (IC7408), OR (Ic7432), NOT (7404) And EX-OR Gate (IC7486)

• 19. Multimeter - 1 No.

• 20. Soft Iron Piece - 1No.



Experiment Coverage:
To Study/ Experiment the following:

• 01. Electricity by Chemical Action

• 02. Electricity by Heat

• 03. Electricity by Magnets

• 04. Conductors and Insulators

• 05. Resistor Colour Code

• 06. Resistors in series combination

• 07. Resistors in Parallel combination

• 08. Resistors in series and Parallel combination

• 09. Ohm's Law

• 10. Applying Ohm's Law

• 11. Kirchoff's Current Law or Junction Rule

• 12. Kirchoff's Voltage Law or Loop Rule

• 13. Linear & Non Linear Resistance

• 14. Measurement of Power

• 15. AC & DC Power

• 16. Fuses and Circuit Breakers

• 17. Heating Effect & the Fuse

• 18. Load in Series and Parallel Circuits

• 19. Cells Connections

• 20. Voltage in series & parallel Circuits

• 21. Current in series and parallel Circuits

• 22 Meter Movement

• 23 Meters in a Circuit

• 24. Charging and Discharging of Capacitors

• 25. Study of Diode

• 26. Full Wave Rectifier (optional)

• 27. The Contactor

• 28. Study of Relay

• 29. The Electric Bell

• 30 Magnets and Magnetism

• 31. Magnetic Field

• 32. Magnetic Properties

• 33. Magnetic Strength

• 34. Magnetic field around a conductor

• 35. Magnetic poles around a helix

• 36. Electromagnetic Strength

• 37. Electromagnetic Effect

• 38. Lenz’s Law

• 39. Self Inductance

• 40. Mutual Induction

• 41. Transformer Action

• 42. Transformer Ratio of Voltages

• 43. Transformer Phasing

• 44. Faraday's Law of Electromagnet Induction

• 45. Motor Action

• 46. The Electric Motor Generator

• 47. Generation of DC

• 48. Generation of AC

• 49. Permanent Magnet DC Motor

• 50. DC Series Motor

• 51. DC Shunt Motor

• 52. AC Universal Motor

• 53. AND Logic Gate with truth table

• 54. OR Logic Gate with truth table

• 55. NOT Logic Gate with truth table

• 56. X-OR Logic Gate with truth table

• 57. Convert a Galvanometer into voltmeter

• 58. Convert a Galvanometer into Ammeter



Note: Specifications are subject to change. Order Code can be different from Manufacturer’s Model No.



Free shipping to any address in South Africa






































































011 805 5030 / 084 3797 031 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Bread Board Trainers

Product code - SKU: Electricity Lab 33516
