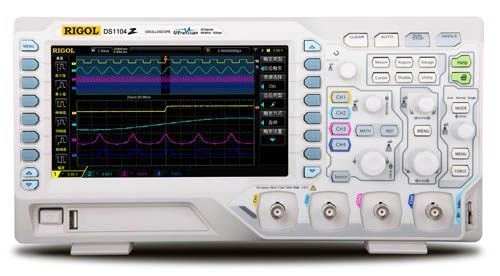

DS1104Z | 100 MHz Digital Oscilloscope

SKU: Rigol DS1104Z

Product Description

The DS1000Z Series is the new economic level Digital Oscilloscope from Rigol to meet the customer's applications with its innovative technology, industry leading specifications, powerful trigger functions and broad analysis capabilities. The DS1000Z 4 channel oscilloscopes come in 70 or 100 MHz versions with a 7 inch display and Rigol's UltraVision technology as well as a host of options. Add the optional analysis, decoding, deep memory, and integrated 2 channel waveform generator for a powerful 4 channel scope at an exceptional price.

Features

  • 100MHz Bandwidth, 4 channels
  • 1G Sa/s Real-time Sample Rate
  • 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
  • Innovative "UltraVision" technology
  • Up to 30,000wfms/s Waveform Capture Rate
  • 7 Inch WVGA (800x480), multiple intensity levels waveform display

Specifications

Model
Bandwidth
100 MHz
Analog Channels
4
Sample Rate
1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
Max Memory Depth
12Mpts(standard) ,24Mpts(option)
Max. Waveform Capture rate
Up to 30,000 wfms/s
Real Time waveform Record and Replay
Up to 60, 000 Frames(Opt.)
Std. Probes
RP2200 150MHz BW Passive Probe:4 sets
Built in 2 Ch Source
No
