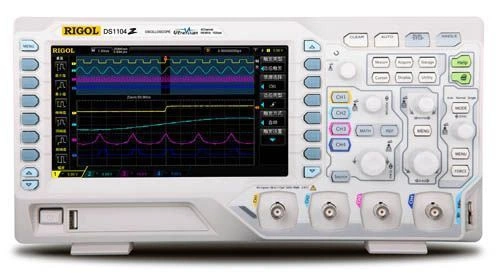

DS1074Z 70 MHz Digital Oscilloscope
SKU: DS1074Z
Features
- 70MHz Bandwidth, 4 channels
- 1G Sa/s Real-time Sample Rate
- 12Mpts (Std.) and 24Mpts (Opt.) Memory Depth
- Innovative "UltraVision" technology
- Up to 30,000wfms/s Waveform Capture Rate
- 7 Inch WVGA (800x480), multiple intensity levels waveform display
Specifications
Model
|
|
Bandwidth
|
70 MHz
|
Analog Channels
|
4
|
Sample Rate
|
1GSa/s (Single-channel), 500MSa/s(Dual-channel), 250MSa/s(Fulll-channel)
|
Max Memory Depth
|
12Mpts(standard) ,24Mpts(option)
|
Max. Waveform Capture rate
|
Up to 30,000 wfms/s
|
Real Time waveform Record and Replay
|
Up to 60, 000 Frames(Opt.)
|
Std. Probes
|
RP2200 150MHz BW Passive Probe:4 sets
|
Built in 2 Ch Source
|
No
|
