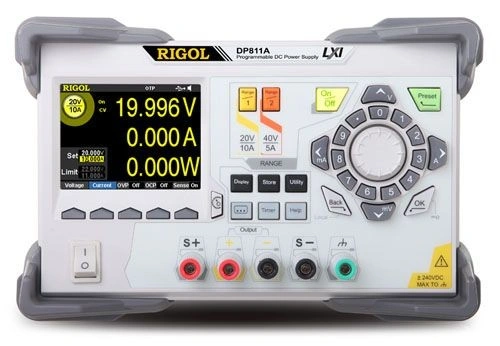

DP811A- Single output, dual range 200 W power supply

SKU: DP811A Single output, dual range 200 W power supply

Product Description

The DP811A Power Supplies combine the ability to source, analyze, and coordinate over time in a powerful new package. The DP811A has a single output with a 20 V / 10 A range and a 40 V / 5 A range for a total of 200 W. With the flexibility of the source users can reconfigure the instrument into any number of systems or applications. Built in V, A, and W measurements make power monitoring easy, but additional wave tracking, timing, and analysis features means there are even more ways to use the supplies. New digital triggering between instruments also makes it possible to reliably combine and connect supplies together. Intuitive to use for everything from education labs to the R & D bench, the DP800 family of power supplies provide incredible value for any application.

Features

  • 2 Ranges; total power up to 200W
  • Low Ripple Noise <350 uVrms/2mVpp
  • Fast transient response time: <50 us
  • Up to 10A or 40 V
  • OVP/OCP/OTP protection functions
  • Built in V, A, W measurements and waveform display
  • Support for output Delay, Analysis, Monitor, and Preset functions
  • 3.5 inch TFT Display
  • Connectivity including USB Host & Device, LAN, and Digital IO

Specifications

Model

DP811A

Channels

1

DC Output (0°C to 40°C )



Voltage/current

0 to 20 V/ 0 to 10 A (Low Range) or



0 to 40 V/0 to 5 A (High Range)

OVP/OCP

0.1 V to 22 V or

0.1 V to 44 V

Load Regulation Rate ±(Output Percentage + Offset)

Voltage

<0.01%+2mV

Current

<0.01%+250uA

Linear Regulation Rate ±(Output Percentage + Offset)

Voltage

<0.01%+2mV

Current

<0.01%+250uA

Ripples and Noise (20Hz to 20MHz)

Normal Mode Voltage

<350μVrms/2mVpp

Normal Mode Current

<2mArms

Common Mode Current

Not specified

Annual Accuracy [1] (25°C ±5°C ) ±(Output Percentage + Offset)

Programming

Voltage

0.05% + 10mV

Current

0.1% + 10mA

Readback

Voltage

0.05% + 10mV

Current

0.1% + 10mA

Resolution

Programming

Voltage

1mV



Current

0.5mA

Readback

Voltage

0.1mV



Current

0.1mA

Display

Voltage

1mV



Current

1mA

Transient Response Time

Less than 50μs for output to recover to within 15mV following a change in output current from full load to half load or vice versa.

Command Processing Time [2]

<118ms

Temperature Coefficient per? (Output Percentage + Offset)

Voltage

0.01%+3mV

Current

0.02%+3mA

Stability [3] ±(Output Percentage + Offset)

Voltage

0.02%+1mV

Current

0.1%+1mA
