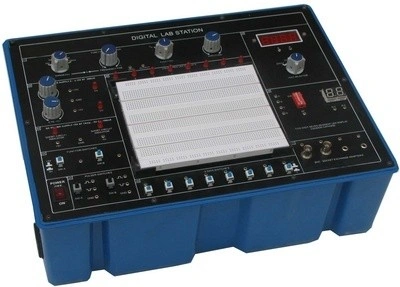

Digital Lab Station

SKU: Digital Lab Station 33506

Bread Board Trainers



Product Description:

DIGITAL LAB STATION is designed for the logic beginners to enhance the comprehension of basic logical theory. The digital lab covers regular digital circuits by solder-less interconnections on breadboard and as well as compitable with all optional modules through use of 2mm brass terminals and patch cords The design of the equipment is easy to operate and understand. It is equipped with various kinds of basic logic gates, debounced logical switches, LED indicators, DC power supply with short circuit protection, pulse generator and solderless breadboard. The unit housed in attractive enclosure is supplied with mains cord, patch cords, Instruction manual.

Learners in high schools, Polytechnic Colleges and Universities, can use the trainer as independent activity tool.



Experimental Coverage:

• 1. Logic gates operation

• 2. To prove De-morgan’s theorem With boolean logic equations

• 3. Binary to Gray code conversion

• 4. Gray code to Binary conversion

• 5. Binary to Excess-3 code conversion

• 6. Binary Adder and Subtractor

• 7. Binary Multiplier

• 8. EX-OR gate implementation

• 9. Application of EX-OR gate

• 10. Johnson Counter

• 11. To verify the dual nature of Logic Gates

• 12. Study of Flip-Flops RS, JK, D&T

• 13. Multiplexer and Demultiplexer

• 14. 4 Bit Binary up and down counter

• 15. Study of 8 to 3 Line Encoder

• 16. Study of 3 to 8 Line Decoder

• 17. Study of Shift Register (SIPO)

• 18. CMOS-TTL Interfacing

• 19. Study of Crystal oscillator

• 20. Study of pulse stretcher circuit

• 21. 4 Bit Ring Counter

• 22. Modulo 12 Counter By Direct Clearing

• 23. Decade counter

• 24. Shift Register SISO and PIPO



1. SOLDER LESS BREADBOARD : Interconnected nickel plated with a total of 2120 tie points in total, fitting all DIP sizes and components with lead and solid wire in diameter of AWG #22-30 (0.3 - 0.8mm)

2. DC POWER SUPPLY :  Variable DC power :

• Positive output voltage: 0 to +15V

• Negative output voltage: 0 to – 15V

• Maximum output current: 300 mA

• Line regulation: < 0.05%/V (Ta=25°C)

• Load regulation: < 30 mV (Ta=25°C)

• Fixed power supply:

• Positive output voltage: 5V ± 0.25V

• Maximum output current: 1 Amp

• Line regulation: < 50 mV

• Load regulation: < 100 mV

• Negative output voltage: -5V ± 0.25V

• Maximum output current: 100 mA

• Line regulation: < 25 mV

• Load regulation: < 30 mV

• All DC Power Supplies are equipped with

• short circuit protection



3. FUNCTION GENERATOR  : Frequency ranges:

• 1Hz - 11Hz

• 10Hz - 110Hz

• 100Hz - 1K1KHz

• KHz - 11KHz

• 10KHz - 110KHz

• Sine wave output: 0 to 8 Vp-p variable

• Triangle wave output: 0 to 6 Vp-p variable

• Square wave output: 0 to 8 Vp-p variable



4. DIGITALVOLTMETER  :    3 1/2 digits LED display 4 ranges:

• 1 - 199.9V full scale

• 2 - 19.99V full scale

• 3 - 1.999V full scale

• 4 - 199.9mV full scale

• Input impedance: 10 Meg. Ohm for any range



5.TWO DIGIT SEVEN SEGMENT LED DISPLAY COMMON CATHODE

6 FOUR POINTTIP/ BANANA SOCKET / BNC SOCKET EXCHENGE ADAPTERS

7. EIGHT BUFFERED LED DISPLAY

8. EIGHT DATA SWITCH

9. TWO FUNCTION SWITCHES

10 TWO PULSE SWITCH



Free shipping to any address in South Africa


011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Bread Board Trainers

Product code (SKU): Digital Lab Station 33506
