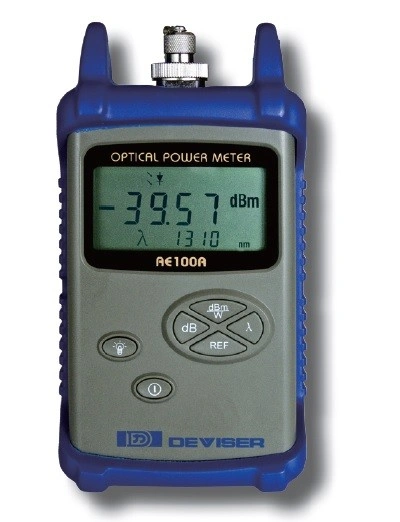

Deviser AE100A Mini Optical Power Meter

SKU: Deviser AE100A Mini Optical Power Meter

Deviser AE100A Mini Optical Power Meter

Overview

Deviser AE Series OPM is an ideal testing instrument for fiber network installation, debugging and maintenance in optical network, CATV and FTTX field. It is a handset with high accuracy, low power consumption and easy carry. furthermore, the large characters displayed on the LCD makes tour measurement experience much easier and simpler.



Key Features

  • Pocket size, easy to carry
  • Power Efficient: up to 50 hours battery life
  • Cost-effective
  • Auto shut down and auto calibration
  • LCD Backlight



Specifications



Deviser AE100A

Accuracy

±0.23dB(±5%)

Optical Adapter

InGaAs

Dynamic Range

-43dBm ~+25dBm

Linearity

                                                              ±0.07dB~10dB

Resolution

                                                                      0.01dB

Wavelength

                              850nm 980mm 1300nm  1310nm  1490nm 1550nm  1610nm

Connector

FC\SC\ST (Universal)

Battery

Regular AAA Battery

Operating Temperature

                                                   -100C ~ +600C

Battery Life

                                                  >50 Hours (Backlight Off)

Dimension

                                                 119mm x 70mm x 29mmWeight

Weight

                                                                       200g
