 Citek-QR SERIES TRIPLE OUTPUT ADJUSTABLE DC POWER SUPPLY images




Citek-QR SERIES TRIPLE OUTPUT ADJUSTABLE DC POWER SUPPLY

: Citek-QR SERIES TRIPLE OUTPUT ADJUSTABLE DC POWER SUPPLY

TRIPLE OUTPUT ADJUSTABLE DC POWER SUPPLY

Citek-QR SERIES



Features

• Output off function

• Triple independent DC outputs. Two adjustable and one fixed output.

• Independent, series and parallel variety output

• Constant voltage and constant current

• Low ripple and noise

• Four LED displays with 3 digits, selectable for two sets output voltage and current display simultaneously

• 16 hours continuous output with full load

• Auto tracking output



Specifications



Line regulation

CV 1 x 10-4                                 CC 2 x 10-3 + 3mA

Load regulation

CV 1 x 10-4 + 4 mV                  CC 2 x 10-3 + 5mA

Ripple & noise

CV 1mV rms                              CC 3mA rms

Display accuracy

± 0.5%Rdg+2digits

Input voltage

110~127VAC ± 10%, 220~240 ± 10% Switchable





Model

Independent

Output

Series

Output

Parallel

Output

Dimensions

(W x H x D)

Weight

(Kg)

Citek-QR302

CH1 0~30V/0~2A

CH1+CH2

0~60V/0~2A

CH1/CH2

0~30V/0~4A

250 x 135 x 300 mm

8.2

Citek-QR303

CH2 0~30V/0~2A

CH3 1A/5V

CH1+CH2

0~60V/0~3A

CH1//CH2

0~30V/0~6A

250 x 135 x 300 mm

8.2

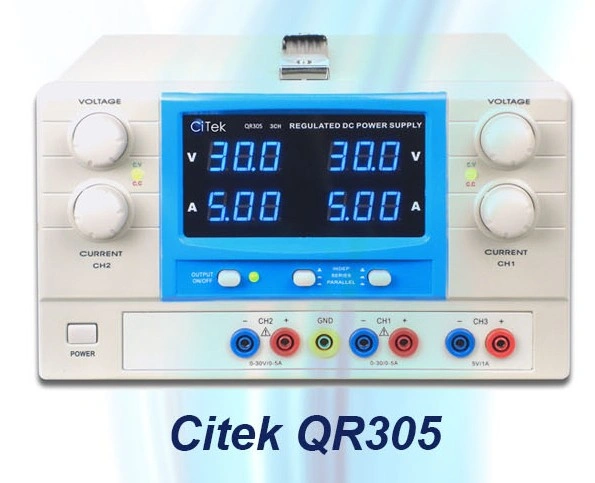

Citek-QR305

CH1  0~30V/0~5A

CH2 0~30V/0~5A

CH3 1A/5V

CH1+CH2

0~60V/0~5A

CH1//CH2

0~30V/0~10A



250 x 135 x 300mm



9
