SKU: Citek 50840
Product Description:
Baseline Conditions and Working Conditions |
|||
Influence Factor |
Baseline Condition |
Working Condition |
|
Ambient Temperature |
23℃±1℃ |
-10℃~40℃ |
|
Ambient Humidity |
40%~60% |
<85% |
|
Waveform |
Sine |
Sine |
|
Signal Frequency |
50HZ±1Hz |
45HZ~65Hz |
|
Meter Power Supply |
9V±0.1V |
9V±1V |
|
External Electric and Magnetic field |
|
Should avoid |
|
Tested Wire Location |
The tested wire should be located in the clamp approximate geometric center |
General Specification |
|
Function |
Phase, AC current, AC voltage, AC leakage current, Direct phase sequence test; Transformer group, Inductive and Capacitive Circuit judgment; Power factor, Power indirect test |
Power Supply |
DC9V Alkaline batteries (1.5V AA×6) |
Power Consumption |
Maximum 35mA when backlight is on, Battery continuously working for 40 hours 5mA when backlight is off, Battery continuously works for 300 hours |
Display Mode |
LCD display, Blue backlight |
LCD Size |
70mm×62mm |
LCD Display Domain |
64mm×54mm |
Meter Size |
L×W×T: 196mm×92mm×54mm |
Clamp Dimension |
φ7.5mm×13mm |
Sample Rate |
3 Times/Second |
Range
|
AC voltage: 0~20V/200V/500V AC current: 0~200mA/2A/20A Phase: 0~360 |
The Tested Signal Amplitude Scope in Phase Measurement |
Phase U1-U2: 30V~500V Phase I1-I2: 10mA~10.00A Phase U1-I2 or I1-U2: 10V~500V, 10mA~10.00A |
Reading Hold |
Press key HOLD to hold the reading, and “DH” displays on the screen |
Auto Power off |
15 minutes after boot |
Battery Voltage Detection
|
When battery voltage is lower than 7.8V, Low batter symbol will display on the screen to remain battery replacement |
Weight of Meter |
Host: 550g (with batteries), Clamp: 170g×2 PCS, Voltage Test line 250g |
Length of Test Line |
1.5m |
Length of Current Clamp Lead |
2m |
Working Temperature and Humidity |
-10℃~40℃; below 80%Rh |
Storage Temperature and Humidity |
-10℃~60℃; below 70%Rh |
Input Impedance |
U1 or U2 Voltage testing: 2MΩ U1U2 phase testing is: 40 KΩ |
Voltage-Resistance |
One minute tolerant duration between meter PCB and shell with 1000V/50Hz sine wave AC voltage input. One minute tolerant duration when input 500V/50Hz sine wave AC voltage between the U1 and U2 input electrodes |
Insulation |
Between meter inner PCB and shell: ≥10MΩ, Between both voltage Inputs: ≥10MΩ |
Structure |
Dual Insulation |
Safety Provisions |
IEC1010-1, IEC1010-2-032, Pollution level 2, CAT Ⅲ(600V) |
Basic error and performance indicators under baseline conditions |
|||
Items |
Range |
Resolution |
Tolerance |
Voltage |
20V 200V 500V |
0.01V 0.1V 1V |
±(1.2%rdg+2dgt) |
Current |
200mA 2A 20A |
0.1mA 1mA 10mA |
±(1.0%rdg+2dgt) |
Phase |
0~360° |
1° |
±3° |

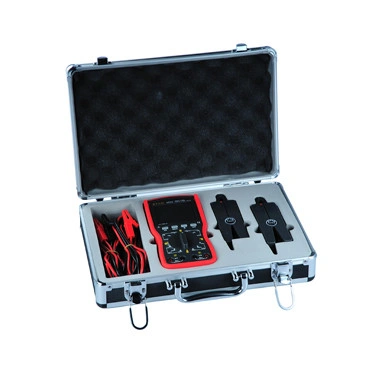

Configuration List |
|
Meter |
1 Piece |
Meter box |
1 Piece |
Current clamp |
2 Pieces |
Test line |
4 Pieces (2 pieces in Red and 2 pieces in Black) |
Battery |
6 Pieces (alkaline battery: 1.5V AA) |
