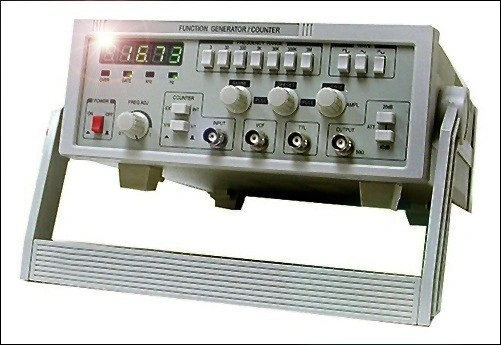

CI5081639B Function Generator
Description
Function Generator
Features:
• Multi waveforms:Sine,Triangle,Square,and etc
• Built-in 5 digits counter(up to 15MHz equal accurate)
• DC offset,symmetry continuously adjustable
• VCF input
• Economical type, low cost
Specifications:
|
Technical Data |
CI5081639B |
|
|
Main output |
Output frequency |
0.06Hz~6MHz |
|
|
Output waveforms |
Sine wave,Square wave,Triangle wave and etc. |
|
|
Output impedance |
50Ω±10% |
|
|
Output amplitude |
≥20Vp-p(No Load) |
|
|
Output attenuation |
0dB/20dB/40dB/60dB |
|
|
DC offset |
0~±10V adjustable |
|
|
Symmetry |
10%～90% |
|
Sine wave |
Distortion factor |
10Hz～100kHz<1% |
|
|
Frequency response |
0.2Hz~100kHz≤±0.5dB 100kHz~2MHz≤±1dB |
|
Square wave |
Rise or fall time |
<100ns |
|
TTL output |
Rise or fall time |
≤1μs |
|
|
Low level |
≤0.4V |
|
|
High level |
≤3.5V |
|
|
Impedance |
600Ω |
|
VCF |
Input voltage |
-5V~0V |
|
|
Input impedance |
10KΩ±10% |
|
Counter |
Display |
5 digits |
|
|
Frequency range |
1Hz~15MHz |
|
|
Input impedance |
≥1MΩ/20pF |
|
|
Sensitivity |
100mVrms |
|
|
Accuracy |
0.1Hz/1Hz/10Hz/100Hz |
|
|
Error |
≤0.003%±1 digit |
|
|
Max.input voltage |
150V(AC+DC)(with attenuator) |
|
|
Input attenuation |
0dB/20dB |
|
Power supply |
110~127VAC±10%,220~240VAC±10%,50Hz±2Hz/60Hz±2Hz |
|
|
Dimension(W×H×D) |
310×80×230mm |
|
|
Weight |
1.75kg |
|
