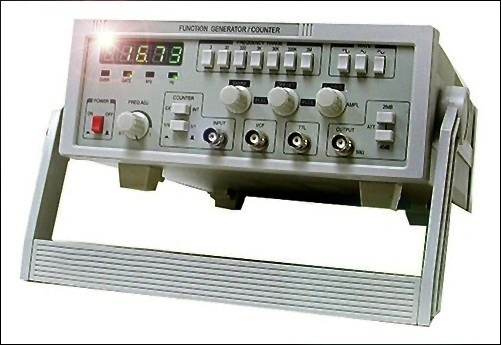

 CI5081639A Function Generator images


Pin It


CI5081639A Function Generator

SKU: CI5081639A Function Generator

Function Generator

Features:

• Multi waveforms:Sine,Triangle,Square,and etc

• Built-in 5 digits counter(up to 15MHz equal accurate)

• DC offset,symmetry continuously adjustable

• VCF input

• Economical type, low cost



Specifications:

Technical Data

CI5081639A



Main output

Output frequency

0.03Hz~3MHz



Output waveforms

Sine wave,Square wave,Triangle wave and etc.



Output impedance

50Ω±10%



Output amplitude

≥20Vp-p(No Load)



Output attenuation

0dB/20dB/40dB/60dB



DC offset

0~±10V adjustable



Symmetry

10%~90%

Sine wave

Distortion factor

10Hz~100kHz<1%



Frequency response

0.2Hz~100kHz≤±0.5dB 100kHz~2MHz≤±1dB

Square wave

Rise or fall time

<100ns

TTL output

Rise or fall time

≤1μs



Low level

≤0.4V



High level

≤3.5V



Impedance

600Ω

VCF

Input voltage

-5V~0V



Input impedance

10KΩ±10%

Counter

Display

5 digits



Frequency range

1Hz~15MHz



Input impedance

≥1MΩ/20pF



Sensitivity

100mVrms



Accuracy

0.1Hz/1Hz/10Hz/100Hz



Error

≤0.003%±1 digit



Max.input voltage

150V(AC+DC)(with attenuator)



Input attenuation

0dB/20dB

Power supply

110~127VAC±10%,220~240VAC±10%,50Hz±2Hz/60Hz±2Hz

Dimension(W×H×D)

310×80×230mm

Weight

1.75kg





011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Function Generator

Product code (SKU): CI5081639A Function Generator
