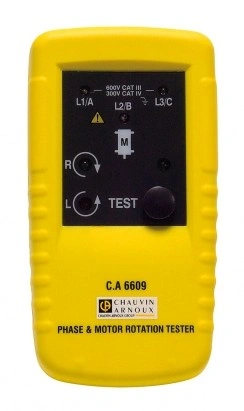

C.A 6609 - Determine the phase order and detect any phase loss

SKU: C.A 6609

Description

For installation, inspection and maintenance teams, the C.A 6609 can be used to identify the phase order on an electrical installation and the rotation direction of any motor, with or without contact.

Identification of the phases ensures correct, safe wiring of the installations or motors, thus preventing damage to the equipment connected to the three-phase network

The C.A 6609 can be used to quickly determine the phase order and detect any phase loss.

It also includes additional dedicated functions for industrial equipment (motors, pumps, etc.):

  • indication of the rotating field direction without connection
  • determination of the connection direction of the phase wires


These various tests are carried out as soon as the cables are connected, for the phase order, and by simply pressing a button for industrial equipment testing. The results are indicated by LEDs which are easy to interpret.

Comprehensive and easy to use thanks to the colour-coding of the terminals and cables, this instrument is ideal for inspection and maintenance teams in industrial buildings. It is delivered with all the accessories needed for the various tests.

Functions and technical specifications:

  • Automatic testing as soon as the connections are set up
  • Indication of phase presence or absence
  • Determination of a motor's rotation direction with or without contact
  • Operating voltage: 40 to 600 VAC between phases with connection / 120 to 400 VAC between phases without connection
  • Frequency: 15 to 400 Hz
  • Electrical safety: IEC 61010 600 V CAT III
  • Dimensions/weight: 130 x 69 x 32mm / 130 g

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Power Monitoring

Product code (SKU): C.A 6609
