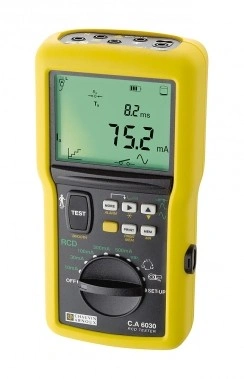

C.A 6030

Description

Innovative and particularly user-friendly, the C.A 6030 RCD is particularly easy to use and offers high metrological performance for the testing protection systems and installations' compliance with the European and international standards NF C 15-100, VDE 0100, NIN/NIV, IEEE 16th, ÖVE EN-1.

  • Direct, safe connection to installation mains socket
  • Reliable measurements due to automatic permutation of L and N inputs if conductors are reversed at socket connection
  • Automatic installation voltage and frequency measurement
  • Tests standard, selective, A and AC RCDs
  • 5 fixed ranges 10/30/100/300/500 mA + 1 adjustable range from 6 to 650 mA
  • RCD non-trip test / trip time measurement (pulse or ramp mode) and exact trip current (ramp mode)
  • Power-on earth measurement: earth loop and 1P earth
  • Current and leakage current measurement with clamp (option)
  • Phase rotation test (2 or 3-wire)
  • Cat.III 600 V
  • Programmable alarms, date-stamped recording of measurement readings, data printout using standard printer, direct transfer of data to PC (transfer software included as standard)
  • Large backlit display / "hands-free" bag
  • Battery-powered - battery life: 2,000 tests
  • Dimensions: 270 x 250 x 60 mm; weight: 900 g

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Power Monitoring

Manufacturer: CHAUVIN ARNOUX
