 C.A 5277 Multimeter images


Pin It

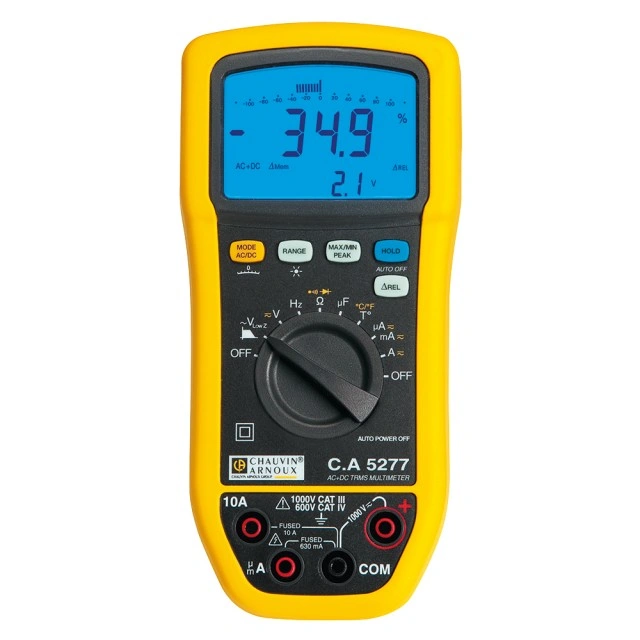

C.A 5277 Multimeter

SKU: C.A 5277 multimeter: P01196777

Description

The comprehensive C.A 5277 multimeter is equipped with all the functions needed for testing, maintenance and inspections

With its high-speed 12-bit converter, the C.A 5277 performs 5 TRMS AC+DC measurements per second with high accuracy whatever the form or type of the signal.

  • TRMS AC+DC measurement of voltage and current
  • 12-bit converter
  • 5 measurements / second
  • CAT IV 600V / CAT III 1000V
  • IP54
  • Double 6,000-count backlit display
  • Bi-mode bargraph with  61+2 segments (full scale/central zero)
  • Automatic or manual range selection
  • VLowZ low-impedance voltage measurement with low-pass filter
  • 1,000 V / 10 A
  • 10 µV resolution
  • Current from 1 µA
  • Measurement of ionization currents
  • Resistance / audible continuity
  • Temperature / Capacitance
  • μA range for ionization current measurement
  • Min / MAX (100 ms)
  • Peak+ / Peak- (1 ms)
  • Differential measurements (&Delta ;X) et RELative (&Delta ;X/X%)
  • 3-year warranty

Equivalent to APPA 99III /Fluke 179

011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00




Product details


Category: Digital Multimeters

Product code (SKU): C.A 5277 multimeter: P01196777
