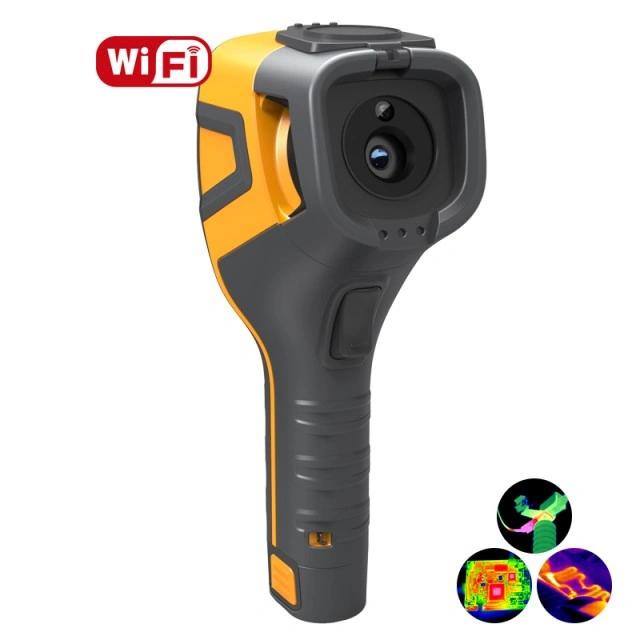

B Series: Tool-like Thermographic IR Camera

SKU: B Series Guideir

Product Description

B series is an efficient, budget-friendly and completely equipped infrared camera. This robust and very handy high-tech system thanks to its intuitively learnable handling and user-friendly single hand operation, which makes it an ideal tool for troubleshooting electrical installations, mechanical components, buildings, process equipment, HVAC/R equipment and others.


Features

· 3.5” large screen with no image cropping, high brightness screen to show image with no detailed information lost even outdoor or in highlight


· Friendly UI, easy to use without training


· Four image presentations--IR, visible, PIP and MIF

Rugged and compact design, metal internal structure


· Standard Micro USB interface for data transmission and charging

B Series: Tool-like Thermographic IR Camera3.jpg

· Removable Large capacity Li-ion battery, 4 hour working time


· Optional Wi-Fi connection with notebook or mobile


· Multi native charging model is selectable(the adapter/computer/car charger/dual battery charger)

B Series: Tool-like Thermographic IR Camera4.jpg

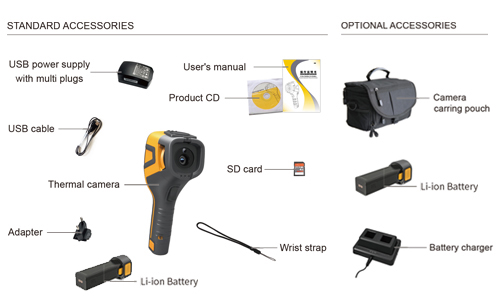

· Standard accessories: Thermal camera/ Li-ion Battery/ USB power supply with multi plugs/ USB cable/ Adapter/ User's manual/ Product CD/ SD card/ Wrist strap


· Optional accessories: Camera carring pouch/ Battery charger/ Li-ion Battery


Parameter

B   Series B160V  B256V  B320V
Imaging Performance
IR resolution 160×120  256×192  320×240
NETD ≤50mk
Focal Length 5mm/F1.2 7mm/F1.1 7mm/F1.1
FOV 30°×23°  34.5°×26.5° 42.5°×32.5°
IFOV 3.30mrad 2.36mrad 2.33mrad
Frame rate 25Hz/9Hz
Focus fixed
Detector
Detector type VOx/7.5~14μm
Pixel size 17μm
Visible light
Resolution 640×480,   Automatic
Image Presentation
Display 3.5"   highlight LCD screen, 320×240
Image modes IR   image,Visible image,MIF,PIP
Digital zoom ×2,×4
Color palettes 6
Measurement
Temperature range -20℃~350℃
Accuracy ±2℃ or   ±2% of reading for ambient   temperature 15℃ to 35℃ and object   temperature above 0℃
Measurement Analysis
Spotmeter Center   spot
Auto tracking Area   Tmax/Tmin tracking
Emissivity correction Variable   from 0.01 to 1.00
Alarm Area   Tmax/Tmin alarms
Storage
Storage medium Removable   SD card(16G)
Image format JPG   with temp info
Video Streaming transferred   to via USB
Interface
Interface Micro   USB(for real-time image/ video   transmission)
WIFI Yes(for   data transfer and camera control)
Power System
Battery Rechargeable   Li-ion battery, ≥4h, Automatic shut-down and   sleeping mode
Environmental Parameters
Operating temp range -10℃~50℃
Storage temp range -40℃~70℃
Encapsulation IP43,1m   drop
Humidity 10% ~   95%
Shock 30g (   IEC 60068-2-27 )
Vibration 10HZ~150HZ~10HZ   0.15mm    IEC60068-2-6
Weight 740g(batterry   included)
Size 258mm×98mm×90mm
