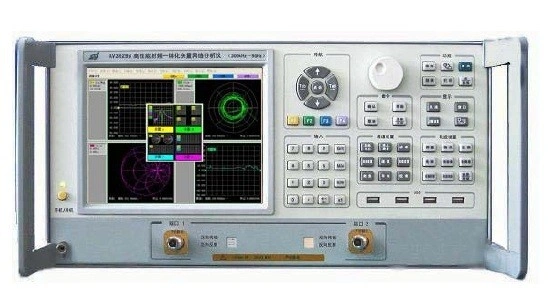

 AV3629A Integrated Vector Network Analyzer 300kHz to 9GHz images


Pin It


AV3629A Integrated Vector Network Analyzer 300kHz to 9GHz

SKU: AV3629A

AV3629A Integrated Vector Network Analyzer 300kHz to 9GHz



Quick Overview:

It is the new generation network analyzer of the 41st Institute of CETC,on the basis of years ofexperience in the design of test and measurement instruments.It is designed to provide fastand accurate RF measurement. With its friendly user interface, it is suitable for production line,service workshop, educational training and R&D.

• 64 independent test channels

• Wide dynamic range

• Windows operation system

• Excellent TFT color display

• Friendly user interface

• GPIB and USB interface

• Fast test speed

• High precision measurement

• High reliability and good repeatibility

Features:

• Multi-window and multi-channel display

It has 32 test windows and 64 test channels(4 traces/channel), which makes it possible to lookat the four s-parameters of two port devices at the same time.

• Measurement Limits

This feature allows the setting of an upper and lower limits thus enabling user to identify signal easily.

• Wide Dynamic Range

It makes the test of filters with high outband depression possible.

• Colour Display

The 8.4-inch TFT color LCD provides a clear, bright, sharp display with a 640 x 480 pixel activedisplay area viewable in high ambient light conditions.

• Information Storage

The vector network analyzer is fitted USB interface for storage of information.

• Interfaces

GP-IB, USB and 10/100Mbps LAN interfaces are provided as standard. This allows thenetwork analyzer to be integrated into ATE system and the print out of screen displays.



Specifications:

Frequency

Frequency range:

300kHz to 9GHz

Frequency resolution:

1Hz

Frequency accuracy:

±1ppm (typical)

IF bandwidth range:

1Hz to 40KHz



S Parameters measurement

Directivity:

≥38dB

Source match:

≥33dB

Load match :

≥36dB

Dynamic range:

≥105dB

Reflection track:

±0.06dB

Transmission track:

±0.05dB

Maximum safe input:

+30dBm

Maximum DC input voltage:

±24V

Output power:

-85dBm ~ +5dBm



Input/Output

Front panel

Test ports :

Type-N female,50Ω

USB interface

Rear panel

VGA output

VGA compatible monitor

LAN interface

10/100Mbps

GPIB connector



General

Power supply:

220 ±10%VAC ,50Hz±5%

Weight:

25kg

Dimensions:

Depth (480mm)×Width(426mm)×Height(222mm)

Operating temperature:

0 °C ~ +40 °C
