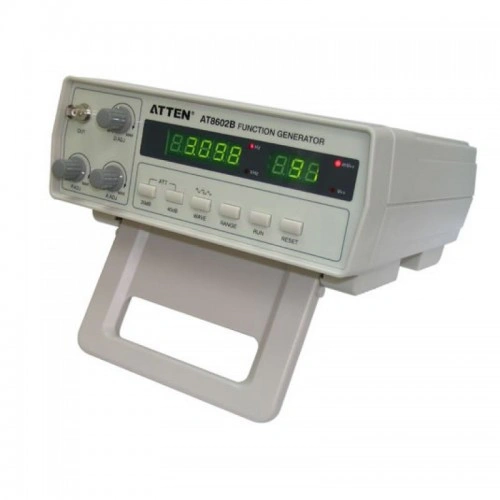

 Atten AT8602B - 0.2MHz-2MHz Digital Function Signal Generator Limited stock / While stocks last images




Atten AT8602B - 0.2MHz-2MHz Digital Function Signal Generator Limited stock / While stocks last

SKU: Atten AT8602B

Old price: ZAR5,100.00 5% discount

New price: ZAR4,807.00

The price includes the tax SA Tax 15%, shipping cost is not included

Please email : matthew@citek.co.za before ordering to confirm stock availability

Product Description

Display range: 0.2Hz-2MHz
Display effective digital: four or five digitals
Measurement errors: d0.5%
Time base
Frequency: 12MHz
Frequency stability: ± 5* 10-5
Working temperature: 0° C~ 40° C
Size: 270* 215* 100
Weight: approx1.6Kg
Power applicabilitu and consume: 110V/ 220V± 10% 50Hz/ 60Hz ± 5% , power consumed15W


Product Brochure


Spec sheet


Technical Parameter
 1). Output frequency
 Frequency range: 0.2Hz~2MHz ; seven ranges
 * 0.2Hz-2Hz
 * 2Hz-20Hz
 * 20Hz-200Hz
 * 200Hz-2kHz
 * 2kHz-20kHz
 * 20kHz-200kHz
 * 200kHz-2MHz
 2). Output signal impedance: 50
 3). Output signal wave-form:
 sine wave, square wave, rectangle wave, sawtooth wave and triangle wave
 4). Output signal amplitude (peak-peak value):
 non-attenuate (2Vp-p~20Vp-p)±20% continuously adjustable
 attenuate 20dB (0.2Vp-p~2.0Vp-p)±20% continuously adjustable
 attenuate 40dB (20mVp-p~200mVp-p)±20% continuously adjustable
 The above are measured with load 1M the output signal amplitude will be half of standard at 5 load.
 5). Function output symmetry adjust scope: 20%~80% (±10%)
 6). Output signal features:
 a) sine wave distortion:<2%
 b) triangle wave linear:>99% (10%-90% of output amplitude)
 c) square wave rise edge times: less than 100nS (10%-90% of output amplitude)
 d) square wave fall edge times: less than 100nS (10%-90% of output amplitude)
 e) square wave rise and fall pulse less than or equal to 5%Vo (50 load).
 f) Test condition: frequency output: 10KHz, amplitude: 5Vp-p,warm-up for 20minutes.
 7).Output signal frequency stability: less than ±0.1%/min (test condition is the same as the above)
 8). Amplitude display (only for 50 load, at 1M load, the real output amplitude is double of the displaying value):
 a) Display digits:2/3 digits (decimal point automatic select place).
 b) Display units: Vp-p or mVp-p.
 c) Display errors: Vo±10%±1d (Vo refers to the true value of output signal)
 d) Resolution: non-attenuate 0.2Vp-p
 20dB attenuate:20mVp-p
 40dB attenuate:2mVp-p
 9). Frequency display:
 a) display range: 0.2Hz-2MHz
 b) display effective digit: four or five digits.
 10). Measurement errors: ≤0.5%
 11). Time base: frequency: 12MHz
 frequency stability:±5x10-5
 12). Working temperature: 0℃~40℃
 13). Size: 270mm x 215mm x 100mm
 14).weight: approx.1.6kg.
 15).Power applicability and consume: 110V/220V±10% 50Hz/60Hz±5%, power consume ≤15W
