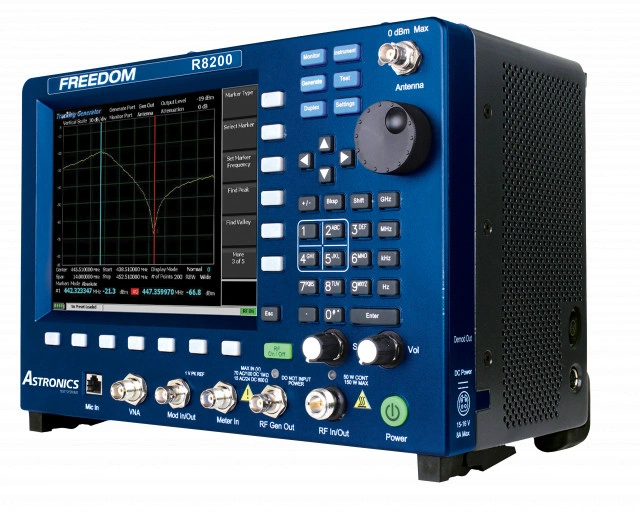

 Astronics Freedom R8200-THE PREMIUM INFRASTRUCTURE TEST TOOL images




Astronics Freedom R8200-THE PREMIUM INFRASTRUCTURE TEST TOOL

SKU: Astronics Freedom R8200-

Product Description

The Freedom R8200 from Astronics Test Systems represents a major step in the evolution of the Land Mobile Radio service monitor. The R8200 is the first and only test instrument that combines comprehensive digital and analog LMR testing with the ability to measure important RF network characteristics such as Return Loss, VSWR and Phase. The R8200 is also the only service monitor with the ability to display RF parameters in a Smith Chart for more complicated network analysis.
Organizations can now save thousands of dollars and potentially much more by combining two instruments into one. The R8200 also allows the technician to carry one portable instrument rather than two – making his or her job easier and freeing space in the van or on the bench. And because the R8200 is built on the proven, industry-standard R8000/R8100 platform, it can be purchased with the knowledge that it is backed by the world-class service and technical support capabilities of Astronics Test Systems.
Saving money and making the technician’s life easier – the next generation of LMR test instruments from Astronics Test Systems.




The new R8200 has the same industry-leading spectral purity and test capabilities as the R8100, plus a single-port Vector Network Analyzer (VNA) capable of measuring return loss, VSWR, and Phase.

Every R8200 ships with a Lithium Ion battery weighing just one pound (490g). The battery powers the unit for well over 90 minutes, and is field swappable in less than 30 seconds. Just open the cover, remove the battery, and insert another into the side of the unit. While on AC power, the R8200 charges the internal battery and when AC power is removed, the unit seamlessly moves from AC to DC without interruption. The R8200 display shows available battery capacity at all times. Spare batteries and a stand-alone charger can also be purchased for applications requiring extended portability.


ADVANCED

FEATURES

Our proprietary “Dual-Display,” showing the carrier and modulation scope on the same screen is included as a standard feature with every R8200, as is a tracking generator and cable fault locator. A feature unique to the R8200 is the ability to select the power meter scale in bar graph mode: choose from 5, 50 or 150W. Finally, the R8200 also offers the ability to display menu selections in French, German and Spanish.


HIGH PERFORMANCE TRACKING GENERATOR


Our Tracking Generator option provides an integrated instrument that sets up the RF Generator in a sweeping mode that is lock stepped with the Spectrum Analyzer. The tracker’s extraordinary dynamic range and response time delivers an invaluable tool for measuring and servicing RF filtering and combining networks like IF filters and Duplexers. The R8200 low Spectrum Analyzer noise floor, FFT processing, and broad selection of display and marker functions assure quick and accurate measurements. Antenna return loss and VSWR measurements can be made without any external equipment.


PREMIER

ERGONOMICS


The R8200 features a color-enhanced, high-contrast display with key measurements shown in larger, bright blue font. It’s tuning knob also serves as a data-entry key, allowing the user to minimize the amount of hand movement required to navigate test procedures. It also sports a rugged, foldable metal handle and ear phone jack for use in high-noise environments.




011 805 5030 / 086 138 6548 - Phone orders
Monday-Friday, 08:00-17:00



Product details


Category: Communication Monitors

Product code - SKU: Astronics Freedom R8200-
