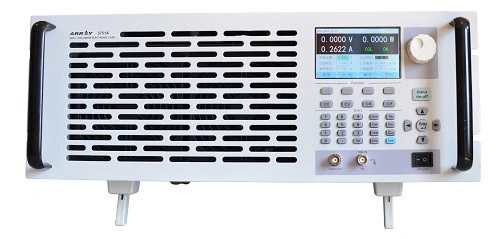

 ARRAY 375X Series images




ARRAY 375X Series

SKU: ARRAY 375X Series

Product Description

Introduction:

ARRAY 375X Series electronic load is a new-generation high-performance programmable electronic load researched
by ARRAY ELECTRONIC CO., LTD, which provides powerful test function and friendly human-machine interface.
The electronic load is equipped with RS232, USB and GPIB interface and supports SCPI standard commands for
programmable instrumentation and LabView development platform, which is widely used in the scientific research
and production field of aerospace, shipbuilding, auto electronics, solar cell and fuel cell.



 Features:

 Four basic testing modes: CC, CV, CR and CP; twelve basic working modes: CCL, CCH, CVL, CVH, CRL, CRH,
 CP, CCL+CV, CCH+CV,CRL+CV, CRH+CV, CP+CV;

 The 16 bit D/A converters and 24 bit A/D converters incorporated, provide the equipment with greatly
 enhanced setting and measurement resolution. The D/A conversion rate can reach 500 KHz and the high
 -speed performance is overall increased;

 Minimum operating voltage is less than 1.8V at the load’s full rated current. The maximum current can
 be achieved even though the input voltage is 0V, which is especially suitable for the fuel cell, solar
 cell, auto charger and other new energy test application. The load is with powerful protection function
 and is reliable in the most complicated test environment;

 High resolution TFT-LCD display;
 High-speed transient test function: the maximum test frequency can reach 50 kHz and the current response
 speed can be 15A/us..
 Powerful sequential test function: the minimum step time is 10us and the maximum step time is 99999s.
 Cyclic times can be set freely and can be chained to another sequence to realize more complex test
 procedure;
 The high-efficiency intelligent cooling system can ensure the equipment has a long-term, full-power,
 trouble-free and continuous work;
 Automatic ON/OFF function effectively simply the test operation;
 The combined use of knob and number keypad makes the operation more convenient;
 Save/Recall function can save multiple groups of common settings;
 With OCP, OPP, OTP protection function and OV, RV alarm function;
 Supporting SCPI and LabView and providing necessary PC software.






Specifications

(The warm-up time is 30 minutes. Specifications indicate warranted performance in the 25°C ± 5°C region of the total temperature range).

Product Brochure

Model 3750A 3751A 3754A 3755A 3756A
Current 0~100A 0~150A 0~180A 0~240A 0~260A
Voltage 0~240V 0~240V 0~240V 0~240V 0~240V
Power*1 1500W at 40oC 2000W at 40oC 3000W at 40oC 4000W at 40oC 5000W at 40oC
Input Characteristics
Constant Current Mode
Low Range 0~6A 0~6A 0~8A 0~8A 0~8A
Resolution 0.1mA 0.1mA 0.1mA 0.1mA 0.1mA
Accuracy 0.2%+5mA 0.2%+5mA 0.2%+5mA 0.2%+5mA 0.2%+5mA
High Range 0~100A 0~150A 0~180A 0~240A 0~260A
Resolution 1mA(0~100A) 1mA(0~100A) 1mA(0~100A) 1mA(0~100A) 1mA(0~100A)
10mA(100~150A) 10mA(100~180A) 10mA(100~240A) 10mA(100~260A)
Accuracy 0.2%+10mA 0.2%+10mA 0.2%+10mA 0.2%+10mA 0.2%+10mA
Constant Voltage Mode
Range 0~240V 0~240V 0~240V 0~240V 0~240V
Resolution 1mV (0~100V) 1mV (0~100V) 1mV (0~100V) 1mV (0~100V) 1mV (0~100V)
10mV(100~240V) 10mV(100~240V) 10mV(100~240V) 10mV(100~240V) 10mV(100~240V)
Accuracy 0.2%+10mV 0.2%+10mV 0.2%+10mV 0.2%+10mV 0.2%+10mV
Constant Resistance Mode
Low Range 0.2Ω~2.4MΩ 0.2Ω~2.4MΩ 0.2Ω~2.4MΩ 0.2Ω~2.4MΩ 0.2Ω~2.4MΩ
Resolution 0.1mΩ 0.1mΩ 0.1mΩ 0.1mΩ 0.1mΩ
Accuracy @V>6V 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ
High Range 0.02Ω~240K 0.01Ω~240K 0.01Ω~240K 0.01Ω~240K 0.01Ω~240K
Resolution 0.1mΩ 0.1mΩ 0.1mΩ 0.1mΩ 0.1mΩ
Accuracy @V>6V 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ 0.5%+12mΩ
Constant Power Mode
Range 0~1500W 0~2000W 0~3000W 0~4000W 0~5000W
Resolution @P<
      100W
1mW 1mW 1mW 1mW 1mW
  @P≥100W 10mW 10mW 10mW 10mW 10mW
  @P≥1000W 100mW 100mW 100mW 100mW 100mW
Accuracy 0.2%+600mW 0.2%+600mW 0.2%+600mW 0.2%+600mW 0.2%+600mW
Current Measurement
Low Range 0~6A 0~6A 0~8A 0~8A 0~8A
Resolution 0.1mA 0.1mA 0.1mA 0.1mA 0.1mA
Accuracy 0.1%+6mA+Vin/50KΩ 0.1%+6mA+Vin/50KΩ 0.1%+6mA+Vin/50KΩ 0.1%+6mA+Vin/50KΩ 0.1%+6mA+Vin/50KΩ
High Range 0~100A 0~150A 0~180A 0~240A 0~260A
Resolution 1mA(0~100A) 1mA(0~100A) 1mA(0~100A) 1mA(0~100A) 1mA(0~100A)
10mA(100~150A) 10mA(100~180A) 10mA(100~240A) 10mA(100~260A)
Accuracy ±(0.2%+8 mA
+Vin/50KΩ
±(0.2%+8 mA
+Vin/50KΩ
±(0.2%+8 mA
+Vin/50KΩ
±(0.2%+8 mA
+Vin/50KΩ
±(0.2%+8 mA
+Vin/50KΩ
Voltage Measurement
Range 0~240V 0~240V 0~240V 0~240V 0~240V
Resolution 1mV (0~100V) 1mV (0~100V) 1mV (0~100V) 1mV (0~100V) 1mV (0~100V)
10mV(100~240V) 10mV(100~240V) 10mV(100~240V) 10mV(100~240V) 10mV(100~240V)
Accuracy 0.1%+8mV 0.1%+8mV 0.1%+8mV 0.1%+8mV 0.1%+8mV
Power Measurement
Range 0~1500W 0~2000W 0~3000W 0~4000W 0~5000W
Resolution @P<
      100W
1mW 1mW 1mW 1mW 1mW
  @P≥100W 10mW 10mW 10mW 10mW 10mW
  @P≥1000W 100mW 100mW 100mW 100mW 100mW
Accuracy 0.2%+600mW 0.2%+600mW 0.2%+600mW 0.2%+600mW 0.2%+600mW
Current Response time
Mode CCH 1mA/us~10A/us 1mA/us~15A/us 1mA/us~18A/us 1mA/us~20A/us 1mA/us~22A/us
    CCL*2 100uA/us~600mA/us 100uA/us~600mA/us 100uA/us~600mA/us 100uA/us~600mA/us 100uA/us~600mA/us
Resolution 1mA/us 1mA/us 1mA/us 1mA/us 1mA/us
Accuracy*3 3% + 10us 3% + 10us 3% + 10us 3% + 10us 3% + 10us
Transient Measurement
Transient mode Continuous、pulsed、Toggled Continuous、pulsed、Toggled Continuous、pulsed、Toggled Continuous、pulsed、Toggled Continuous、pulsed、Toggled
Frequency range*4 0.025Hz~50kHz 0.025Hz~50kHz 0.025Hz~50kHz 0.025Hz~50kHz 0.025Hz~50kHz
High/Low Transfer Time 10us~10s 10us~10s 10us~10s 10us~10s 10us~10s
Resolution 10us 10us 10us 10us 10us
Accuracy 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us
Rise/Fall Time 10us~10s 10us~10s 10us~10s 10us~10s 10us~10s
Resolution 10us 10us 10us 10us 10us
Accuracy 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us
List Measurement
Step Time 10us~99999s 10us~99999s 10us~99999s 10us~99999s 10us~99999s
Resolution 10us 10us 10us 10us 10us
Accuracy 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us 0.2%+10us
Step Number 1~50 1~50 1~50 1~50 1~50步
Loop Times 1~255 1~255 1~255 1~255 1~255
Saved Volume 10 10 10 10 10
Expanded Function Chain Chain Chain Chain Chain
Response time
Current 10A/us 15A/us 18A/us 20A/us 22A/us
Voltage 0.5V/us 0.6V/us 0.6V/us 0.6V/us 0.6V/us
Open Impedance ≥20kΩ ≥20kΩ ≥20kΩ ≥20kΩ ≥20kΩ
Trigger
Trigger Level TTL Fall TTL Fall TTL Fall TTL Fall TTL Fall
Trigger pulse delay ≥10us ≥10us ≥10us ≥10us ≥10us
Limited Input
Current 101A 151A 181A 241A 261A
Voltage 242V 242V 242V 242V 242V
Protected mode Over current Over current Over current Over current Over current
Over temperature Over temperature Over temperature Over temperature Over temperature
Over Power Over Power Over Power Over Power Over Power
Alarm function Over voltage Over voltage Over voltage Over voltage Over voltage
Polar opposite Polar opposite Polar opposite Polar opposite Polar opposite
Opposite current capacity
Input OFF 90A 120A 150A 200A 220A
Input ON 100A 150A 180A 240A 260A
Rippling & Noise
Current(rms/p-p) ≤3mA/30mA ≤3mA/30mA ≤5mA/30mA ≤8mA/30mA ≤8mA/30mA
Voltage (rms) ≤5mV ≤5mV ≤5mV ≤5mV ≤5mV
environment
Temperature*1 0~50oC 0~50oC 0~50oC 0~50oC 0~50oC
Humidity ≤85% ≤85% ≤85% ≤85% ≤85%
Interface*5 RS232, GPIB, USB RS232, GPIB, USB RS232, GPIB, USB RS232, GPIB, USB RS232, GPIB, USB
Programming SCPI SCPI SCPI SCPI SCPI
Rated Input
Voltage (AC110V、AC120V、
AC220V、AC240V)±10%
(AC110V、AC120V、
AC220V、AC240V)±10%
(AC110V、AC120V、
AC220V、AC240V)±10%
(AC110V、AC120V、
AC220V、AC240V)±10%
(AC110V、AC120V、
AC220V、AC240V)±10%
Frequency 48 to 63Hz 48 to 63Hz 48 to 63Hz 48 to 63Hz 48 to 63Hz
Power
consumption
100VA 100VA 130VA 130VA 130VA
Net Weight 24kg 26.5kg 38kg 42kg 45kg




*1、As the environment temperature less than 40oC, this apparatus canload the rated input power continuously, more than 40oC and less than 50oC,only can load the 75% of rated input power.

*2、At CCL mode, current transfer speed is the 1/10 of the set value.

*3、Transfer time is the time that from 10% to 90% of the final value.

*4、Transient frequency is decided by the high/low level keeping time and rise & fall time.

*5、Standard attachments are including RS232 interface and USB interface, selected attachment is including GPIB interface.
