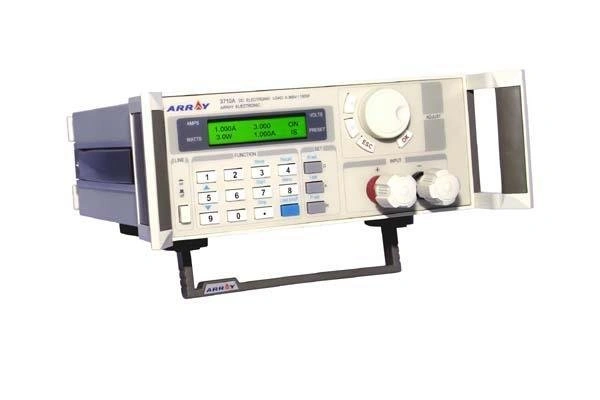

Array 3711A

Product Description:

The Array 3711A series is a single input programmable DC electronic load that is capable of outputing up to 300 Watts of power. It provides a convenient way of testing batteries, DC power supplies and more. The 3711A offers constant current mode, constant resistance mode and constant power modes. The backlight LCD, numerical keypad and rotary knob make it easy to set maximum voltage, current and power settings. Up to ten voltage/current parameters can be stored in memory for instant recall. The 3711A DC electronic programmable load is an essential instrument for Research and Development, test and manufacturing sectors.

Specifications:

• Maximum power: 300W
• Maximum current : 30A
• Maximum voltage input: 360V
• Programmable output
• 10 step program storage for current and voltage
• Power overload protection
• High Resolution measurements
• PC software monitoring
• CC/CP/CR mode
• Multifunction menu
• Voltage, Current, Power and Temperature overload protection
• Can be connected in parallel
• Backlight LCD display
• Compact and Lightweight

Applications:

• Battery Testing
• Power Supply Testing
• Solar Cell/Array Testing
• Fuel cell testing
