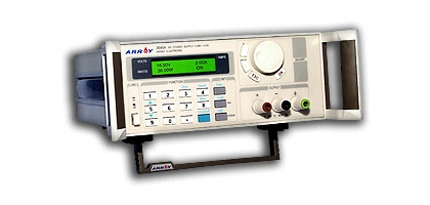

Array 3645A Power Supply

SKU: 3645A

Product Description:

The Array 3645A Programmable Power Supply is a sophisticated, high performance single-output programmable DC power source. It is easy to program via the front panel, or by computer. The backlight LCD, numerical keypad and rotary knob make it easy to set maximum voltage, current and power settings. The 3645A offers constant current mode, constant resistance mode and constant power modes. and up to ten voltage/current parameters can be stored in memory for instant recall. Low noise, excellent regulation, and built-in voltmeter / ammeter make this reliable power supply well suited for educational labs, schools and general purpose applications



Characteristics:

  • •Voltage and current protection
  • •Adjustable and constant voltage and current outputs
  • •Programmable output
  • •10 step program storage for current and voltage
  • •High Resolution - 1mV
  • •CC/CP/CR mode
  • •Programmable power shutdown
  • •Multifunction menu
  • •Voltage, Current, Power and Temperature overload protection
  • •Can be connected in series and parallel to expand output voltage and current
  • •PC software monitoring
  • •Backlight LCD display
  • •Compact and Lightweight



Model 3645A





Number of outputs

1

DC outputs (Voltage)

0 - 36V

DC outputs (Current)

3A

Power (max)

108W

Line regulation

Line regulation (Voltage)

0-3.999V: 0.01%+3mV

4-36V: 0.02%+10mV

Line regulation (Current)

0.02%+8mA

Load regulation

Voltage

0.02%+10mV

Current

0.02%+10mA

Ripple and noise

Ripple and noise (Voltage)

<1mV rms

Ripple and noise (Current)

<4mArms

Programming accuracy at 25°C ±5°C

Voltage

0.1%+20mV

Current

0.2%+20mV

Readback accuracy at 25°C ±5°C

Accuracy (Voltage)

0-19.99V : 0.2%+20mV

20-36V : 0.2%+100mV

Current

0.2%+20mA

Program resolution

Voltage

0-3.999V : 1mV

4-36V : 10mV

Current

1mA

Readback resolution

Voltage

0-19.99V : 10mV

20-36V : 100mV

Current

10mA

General



Interface:

RS232 / RS485 / USB

Protection:

Over voltage / over current / over power

AC Input:

110V/220VAC ±15%, 4763Hz

Electronic load software:

PowerMS Power Management System software, ActiveX and DLL tools

Supports VB,VC++,DELPHI,LABVIEW

Operating Environment:

50°C, 80%RH

Weight:

6.0kg

Dimensions:

212.6 mm (W) x 88.1 mm (H) x 250 mm (D)

Optional Accessories:

RS232 adapter, RS485 adapter, USB adapter
