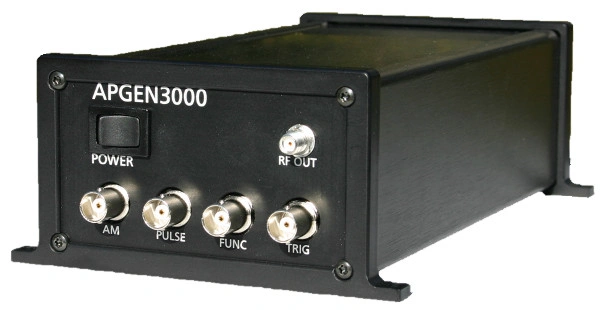

 APGEN3000 images


Pin It


APGEN3000

SKU: AnaPico APGEN3000

Product Description:

The APGEN 3000 is a versatile, ultra-compact general-purpose RF signal generator, with 0.1 Hz frequency resolution, good signal quality, and powerful trigger features.

It offers a wide leveled output power range from -65 to +10 dBm and a variety of sweeping and modulation capabilities ideally suited for EMC measurements. The APGEN3000 extends AnaPico’s signal generator family with an attractive solution for very cost-sensitive applications.



Features:

 • Very compact and rugged enclosure

• 0.1 Hz to 50 kHz rate AM and fast pulse modulator

• LAN + USB + GPIB (optional) with SCPI instruction set

• PC-based virtual panel software utilities and drivers

• Powerful trigger and sweep modes



Applications:








Specifications:

Parameter

Value

Notes

Frequency range

9 kHz  --  3000 MHz



resolution

0.1 Hz



Settling time

5 ms



SSB Phase noise





at 20 kHz from carrier

-102 dBc/Hz

1 GHz carrier

wideband noise

-150 dBc/Hz



Power level





Range

-65 --  +10 dBm



  Resolution

0.1 dB



Level uncertainty

< 1 dB



Output impedance

VSWR

50 W

< 1.8



Spectral purity

 output harmonics

  non-harmonic spurious



< -30 dBc

< -55 dBc



at +7 dBm, f> 1 MHz

Amplitude Modulation





Rate

0.1 Hz – 20 kHz

Sine, pulse, triangle

Depth

0 to 90 %



Distortion

2 % at 30 %

3 % at 80 %

fmod = 1 kHz

Pulse Modulation





Rate

DC – 10 MHz



On/OFF Ratio

60 dB



Pulse width

> 100 ns



  Rise/Fall times

< 10 ns



Internal reference frequency

100 MHz



 Temperature stability

±5 ppm

0 to 50 °C
